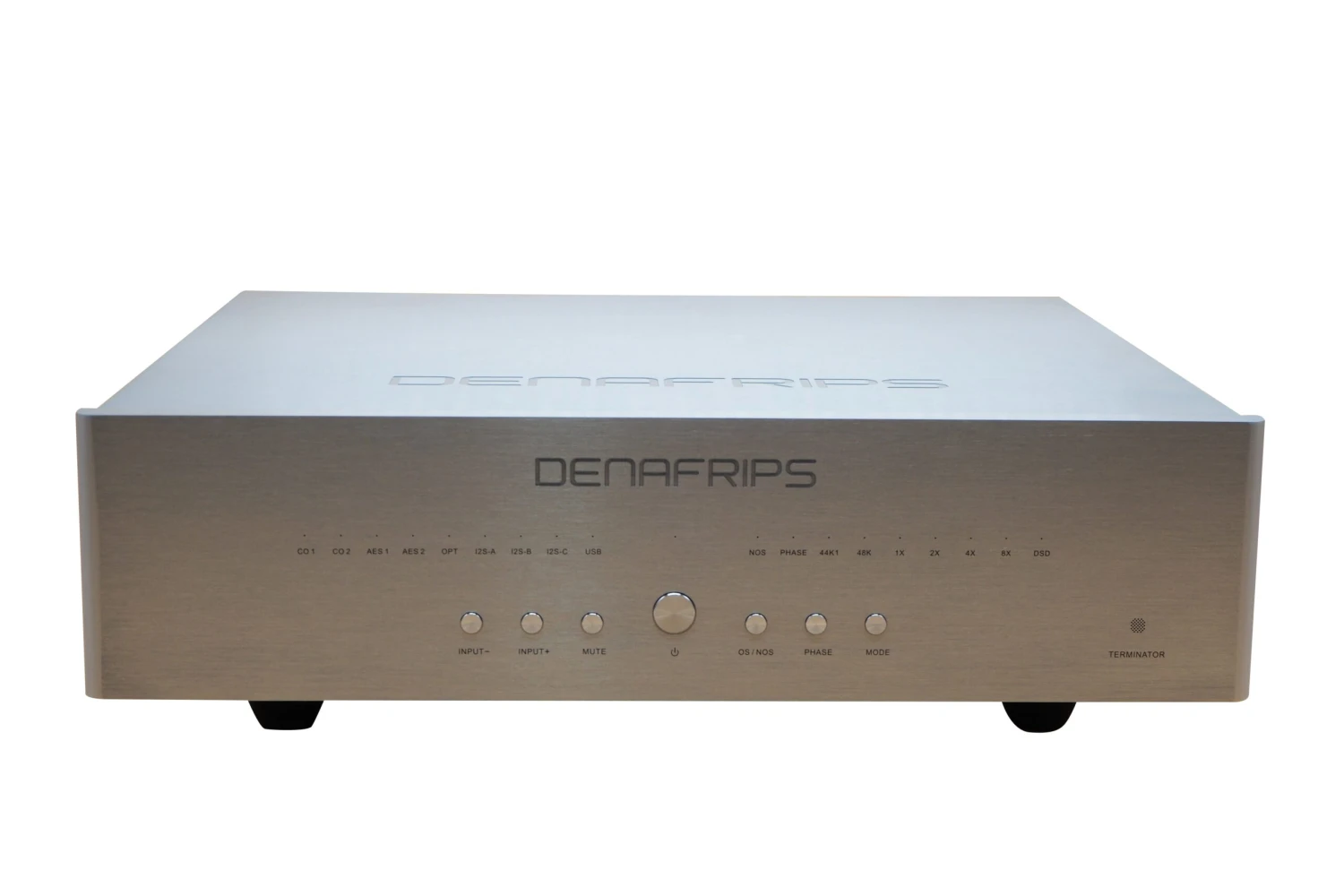

Denafrips Terminator DAC

• ♫ Terminator R2R DAC – Denafrips designed fourth generation discrete resistance R2R DAC module, which is true analog sound. It breaks through the limitations of the traditional built-in DAC chip, and the playback effect is the best sound of the best audio.
• Multiple inputs: Toslink fiber terminator, 2 x AES, 2 x Coaxi, 3 x I2S, can be configured with an external asynchronous USB interface or with digital dial via I2S, supports 32-bit, 1536 kHz DSD1024.

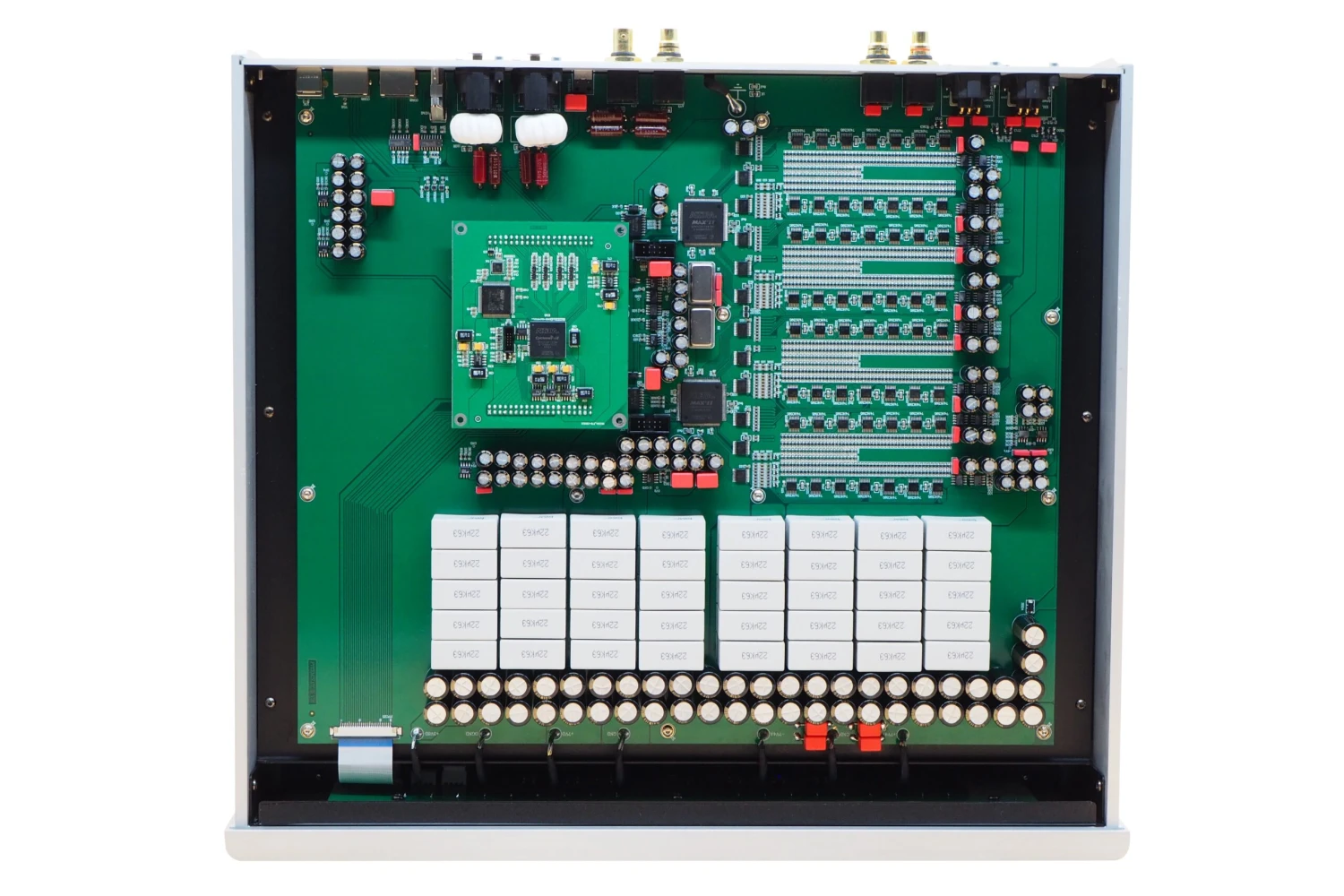

• Core Conversion Module: The decoding module is built with high precision 0.005% 10 PPM discrete resistors. Each channel uses more than 500 pieces. The whole machine uses up to 1000 resistors to achieve extremely low distortion, which is more than 4 times that of the general R2R decoder.
• ♫ Clock Processing: The Terminator uses first-in-out (FIFO) technology commonly used in communications, so the decoder’s internal clock is hardly affected by the external input signal clock.
• Excellent resolution: in terms of sound, the width and depth of the sound field, clarity and resolution, low-frequency diving and volume, the realism and texture of the instrument are excellent. The sound is smooth and relaxed, not the kind of stimulating sound.



Technical Highlights

• Proprietary R2R + DSD Architecture
• True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters)
• Matched Precision Thin Film 0.005% R-2R Network Arrays
• Encapsulated Flagship Ultra Low Noise Power Supply
• Oven Controlled Crystals OCXO
• Adaptive FIFO Buffer Reclocking
• New Improved Digital Signal Processing FPGA Code
• DSD1024, PCM1536 Supports On USB & I²S Input
• Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
• Licensed Thesycon USB Driver For Windows Platform
• Driverless On Mac & Linux
• Dual AES/EBU Input Supports
• Sharp/Slow Filters Option
• I²S Pinout Configuration
• I²S DSD Channel Swap Configuration



DSD

• DSD64-DoP On All Input
• DSD1024 On USB & I²S Input Only



PCM

• 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
• 1536kHz On USB & I²S Input



Sampling Mode: Non-Oversampling NOS / Oversampling OS

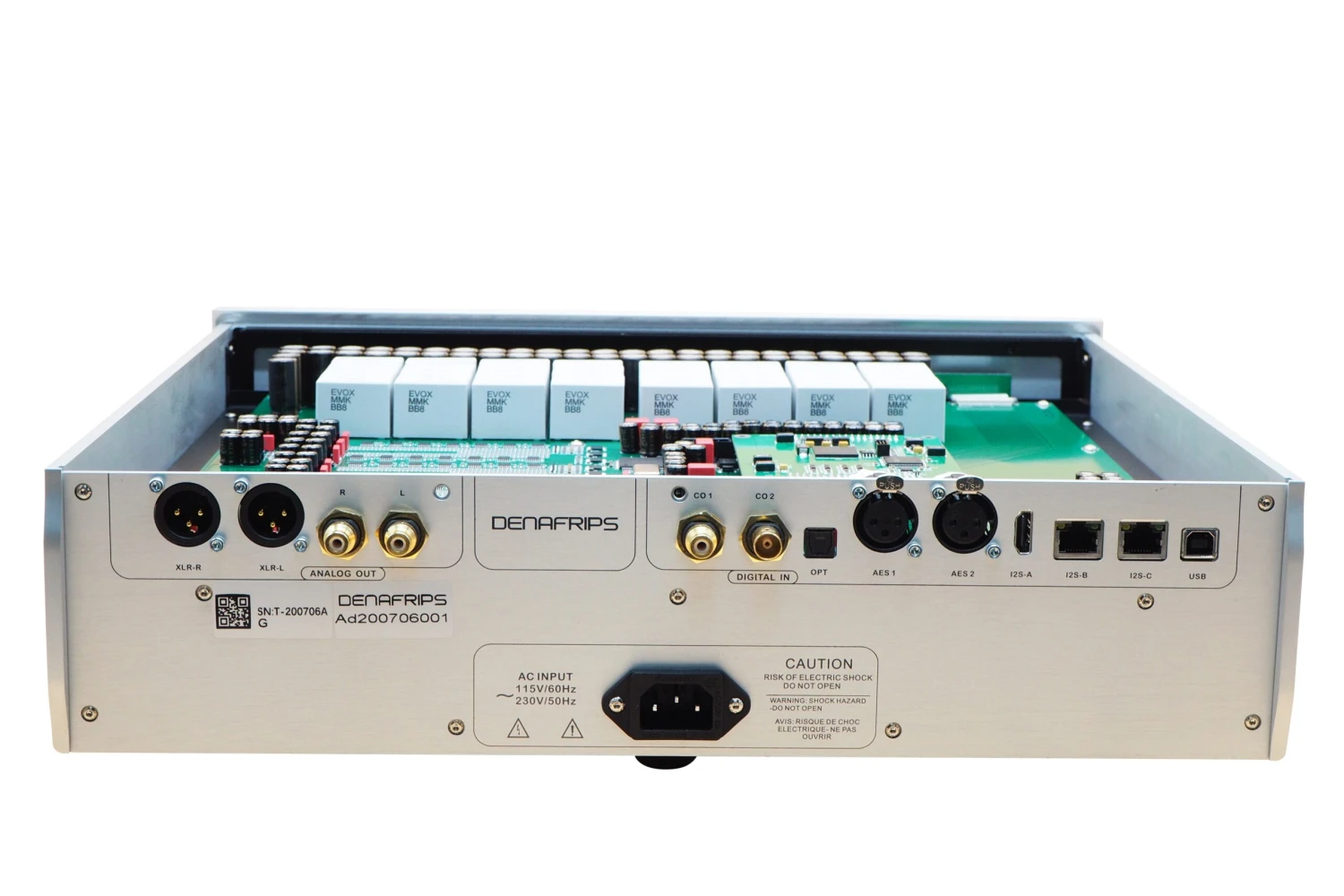

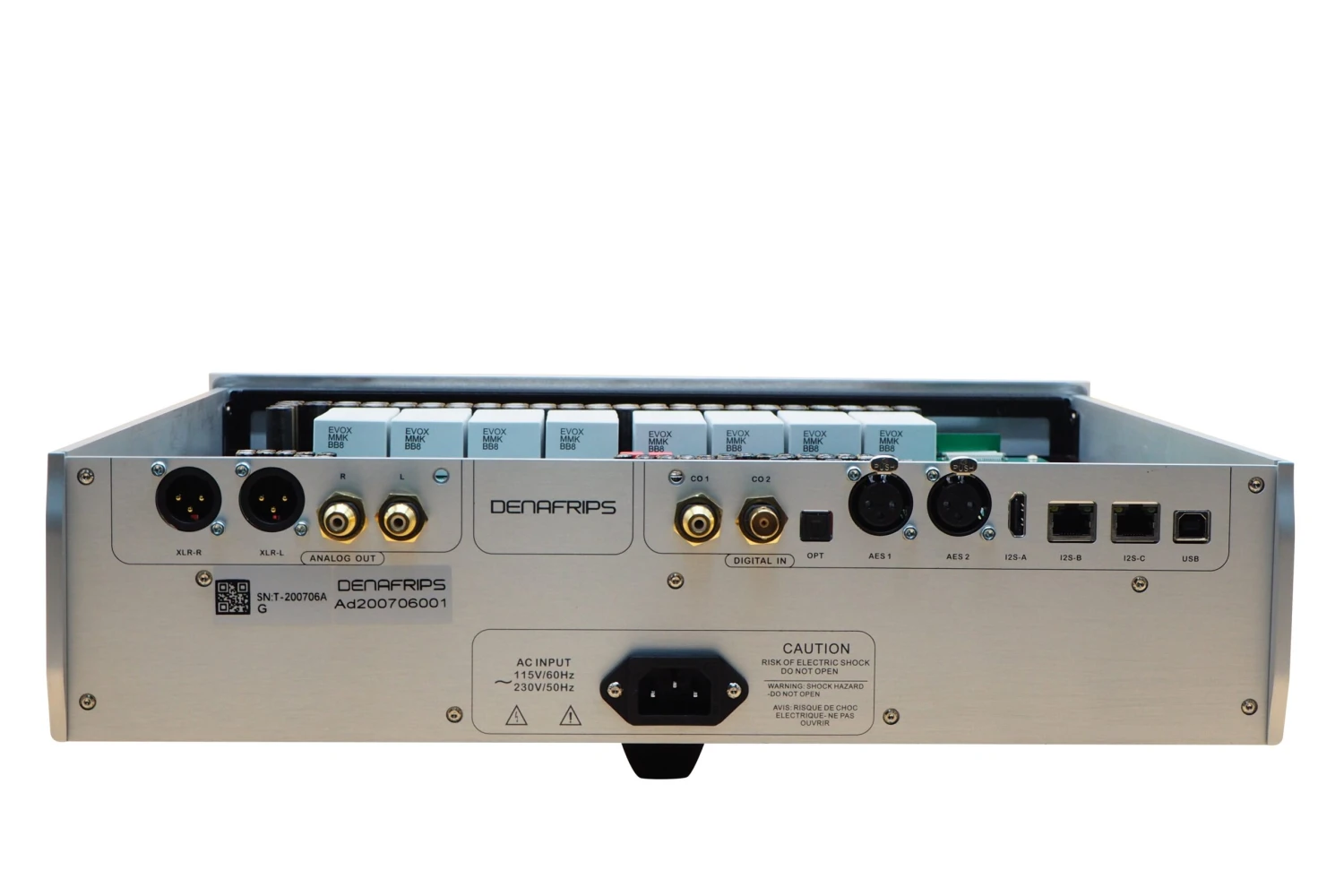

Digital Input

• Coax via RCA
• TOSLink x 1
• AES/EBU x 2
• USB
• I²S via HDMI LVDS
• I²S via RJ45 LVDS
• I²S via RJ45 LVCMOS



Analog Output

• RCA at 2.0Vrms, 625 Ω
• XLR at 4.0Vrms, 1250 Ω



Clock Output

• 44.1KHz, 48KHz
• 22.5774Mhz, 24.576Mhz
• 45.1548MHz, 49.152Mhz



Frequency Response: 20-40KHz -0.2dB

THD+N: 0.0015%

S/N Ratio: 127dB

Dynamic Range: >132dB

Stereo Crosstalk: -110dB



AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage)

Power Consumption: ≤20W

Dimension: 430 x 380 x 105 mm

Package Dim: 610 x 570 x 275 mm

Package Content: DAC only. No power cord & remote control.

Weight: 19.0 Kg

Color: Silver / Black
