Just add Remote Control.

Beneath its classy exterior, the ZEN Stream is a technological streamer-de-force. It has one purpose – to send music simply from the Internet to your DAC with no loss of quality.

True hi-res performance of PCM384/DSD256 via WiFi/LAN. Just add your smart device as a remote and away you go.

Optimised open-source architecture – works with multiple dedicated platforms, completely and perfectly future-proofed as it is constantly updated.

Ease of use + audiophile implementation. Follow our simple set-up guides on YouTube. It is the bee’s knees of Streamers.

Check out what’s in the box here.

Warp speed tech.

ZEN Stream is a true ground-up design by iFi — the hardware and software implementation is quite exceptional:

Two SuperSpeed USB3.0 ports with Active Noise Cancellation II
S/PDIF out with the iPurifier built-in
Power supply with Silent Power tech
iFi software developed with Volumio open-source as the starting point, then coded and optimised by us to achieve the purest streaming software bar none

These are some of the factors behind why the ZEN Stream is at the cutting-edge handling PCM384/DSD256 on LAN and WiFi (802.11n, with 100Mbps on 5Ghz).

‘Exclusive’ for your ears only.

The ZEN Stream has one of the most fully-optimised software platforms in the world.

From the device’s drivers, to the kernel (the heart of the operating system), to the shell (which interfaces with the kernel), to the applications and the user interface — everything is fully optimised for seamless operation and excellent sonic performance.

An ingenious part of the ZEN Stream’s design is the ability to select between ‘Exclusive’ modes – individual settings dedicated to specific modes of operation to deliver the purest possible performance. All other programs are shut down – to minimise ‘software jitter’ — an often overlooked aspect that negatively impacts the quality of computer audio playback.

This ensures that the ZEN Stream is not merely a ‘jack of all trades’, but a master of all too.

All-in-one (AIO) covers all modes
Roon only – feature coming soon – ROON ready
Tidal streaming
NAA streaming
DLNA streaming

Please note software updates may take 2-3 minutes. Please do not disconnect your device.

IFi Zen Stream Network Audio Transport -Audio Headphone Store ytm e1624287942251

Who’s who of Streaming.

Hot off the press, the ZEN Stream has the following connectivity options:

Stream straight from Spotify/Tidal apps with Spotify Connect and Tidal Connect
Works with any DLNA certified streaming app (our own app is imminent!)
Integrated Airplay and Chromecast* – easy streaming from Apple and Android devices
ROON Ready functionality to be added in a future update.
NAA operation in conjunction with Sygnalist’s HQPlayer software

*Chromecast to come in a future update.

Tech savvy.

Beneath the unassuming casework sits some serious horsepower in terms of both technologies and components:

Powerful 64-bit quad-core ARM Cortex microprocessor
USB and S/PDIF interfaces regulated by femto-precision GMT clock to eradicate jitter
Active Noise Cancellation II and iPurifier technologies for USB and S/PDIF interfaces respectively
Intelligent Ethernet switch controller
High-PSRR, low idle current, low-dropout voltage regulators with soft start
Synchronous 1.6MHz high-speed precision power supply controller
C0G capacitors and Taiyo Yuden and Murata low ESRinductors

IFi Zen Stream Network Audio Transport -Audio Headphone Store micro idsd bl detail 1 2

This is a true hi-res device. It uniquely supports PCM up to 32-bit/384kHz over Wi-Fi as well as Ethernet cable, plus DSD up to 11.2MHz (DSD256). Highly unusual in a Wi-Fi streamer.

IFi Zen Stream Network Audio Transport -Audio Headphone Store Exclusives Modes

Our ‘exclusive modes’ give you individual settings dedicated to specific modes of operation to deliver the purest possible performance.

All-in-one
This non-specific mode is great for all platforms, audio formats and devices.

DLNA streaming
Select this mode to optimise performance when using the ZEN Stream with DLNA-compatible apps and devices.

NAA streaming
Select this mode when using the ZEN Stream as a Network Audio Adapter in conjunction with Signalyst HQPlayer software.

Feature coming soon – ROON Ready
ROON Ready functionality to be added in a future update. Select this mode when integrating the ZEN Stream into a ROON environment.

Tidal streaming
If you are a subscriber to Tidal’s Masters Tier, this is the mode for you.

IFi Zen Stream Network Audio Transport -Audio Headphone Store Dual Band Wi Fi 1

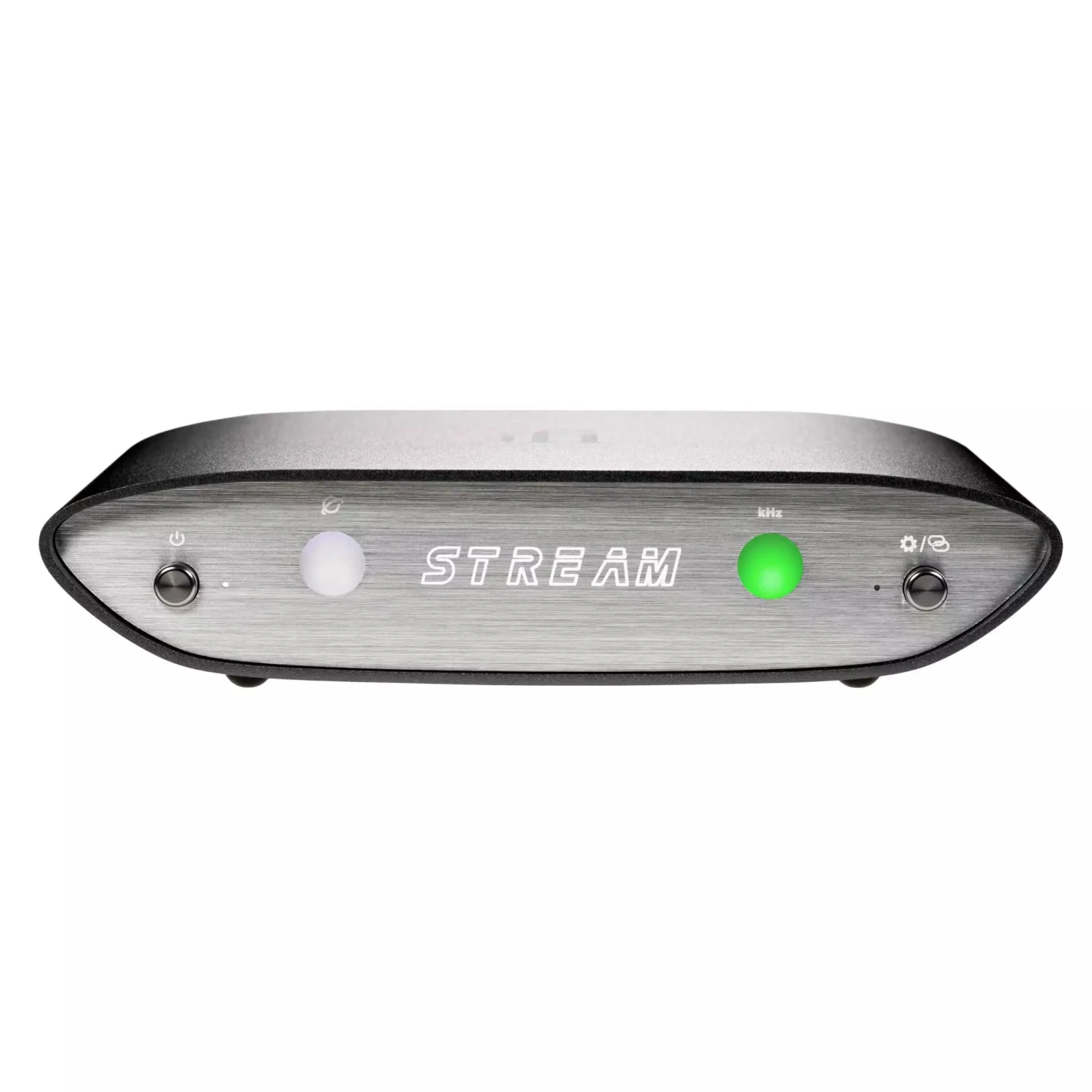

Use the ‘hotspot’ button on the front to join a Wi-Fi network.

Dual-band Wi-Fi reception supports 802.11a/b/g/n/ac for a fast, reliable wireless connection.

IFi Zen Stream Network Audio Transport -Audio Headphone Store Arm Powered

The circuit design has been painstakingly engineered to deliver superb sound, with processing muscle supplied by a 64-bit, quad-core ARM Cortex microprocessor.

IFi Zen Stream Network Audio Transport -Audio Headphone Store USB 3.0 ANC II

The USB ports – both input and output – support the SuperSpeed USB3.0 standard and benefit from iFi’s Active Noise Cancelling technology to remove distortion from the audio signal.

Similarly, the coaxial S/PDIF output incorporates iFi’s iPurifier signal purifying technology.

IFi Zen Stream Network Audio Transport -Audio Headphone Store Global Master Timing

Both of the two digital outputs – asynchronous USB and coaxial S/PDIF – that provide connectivity to an external DAC or an amp with digital inputs are regulated by iFi’s femto-precision GMT (Global Master Timing) circuitry to eradicate jitter from the digital audio signal.

IFi Zen Stream Network Audio Transport -Audio Headphone Store Intelligent Ethernet

Intelligent Ethernet. The device uses a high-performance Ethernet switch with a low-power integrated 5-Port Giga-PHY.

IFi Zen Stream Network Audio Transport -Audio Headphone Store Voltage Balance

We’ve utilised high-PSRR, low idle current, low-dropout voltage regulators with soft start. This means maximised efficiency and minimised system noise.

IFi Zen Stream Network Audio Transport -Audio Headphone Store Speed PSU

Add to this, a synchronous 1.5MHz high-speed power supply controller for even great noise reduction and even less distortion.

IFi Zen Stream Network Audio Transport -Audio Headphone Store Taiyo Yuden

Carefully chosen circuit components including discrete, high-grade surface-mounted devices such as TDK C0G multilayer ceramic capacitors and inductors from Taiyo Yuden and Murata add to the quality build of this product.

IFi Zen Stream Network Audio Transport -Audio Headphone Store Zen Stream Audio App Compatibility

IFi Zen Stream Network Audio Transport -Audio Headphone Store iFi ZenStream Photos 06 copy

IFi Zen Stream Network Audio Transport -Audio Headphone Store iFi ZenStream Photos 02 copy

IFi Zen Stream Network Audio Transport -Audio Headphone Store iFi ZenStream Photos 04 copy

IFi Zen Stream Network Audio Transport -Audio Headphone Store endless connection 04

IFi Zen Stream Network Audio Transport -Audio Headphone Store iFi Connections ZENStream 01

Support

Specifications

Input voltage	DC 9V/1.8A-15V/0.8A AC 100 -240V, 50/60Hz
Input	Wi-Fi / Ethernet / USB HDD (Firmware updates via OTA and USB-C at rear)
Formats	PCM384 DSD256 (MQA-fully compatible)

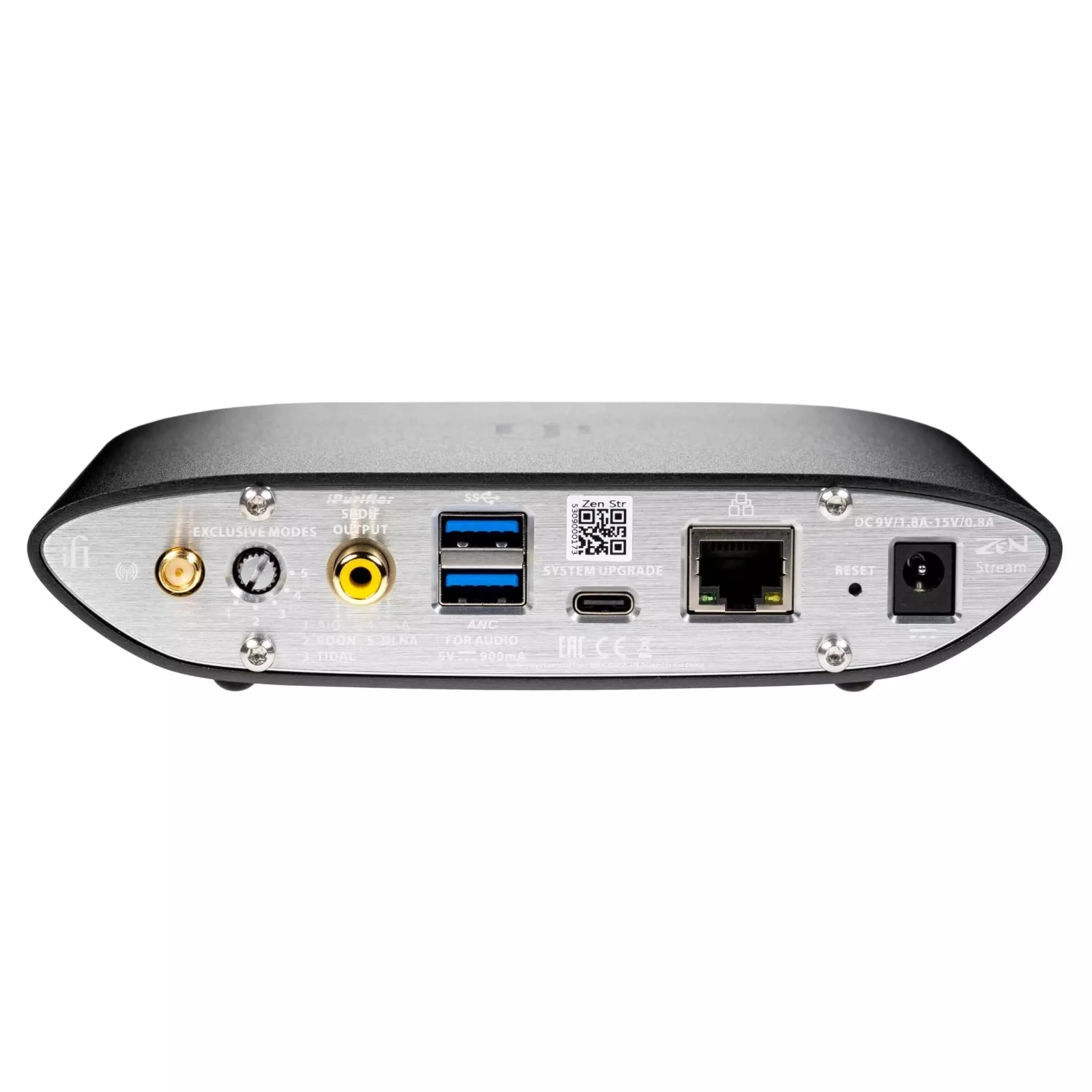

Output	USB3.0 (Type-A Socket) x2 SPDIF (Coaxial)
Power consumption	No Signal ~6W Max Signal ~10W
Dimensions	158 x 100 x 35 mm 6.2″ x 3.9″ x 1.4″
Net weight	578g (1.14 lbs)
