Musician – Pegasus R2R DAC Decoder

Musician Pegasus R2R DAC is a USB digital to analog converter that incorporates a discrete resistor ladder DAC, commonly known as the R-2R DAC, with Thesycon USB Driver for Windows. This device operates at 24 bits/1536 kHz. It uses the most basic R-2R DAC technology, which makes it the ideal architecture for reproducing music. The R-2R DAC is often filled with emotion, comfort, high fidelity, and transparency, despite its sound.

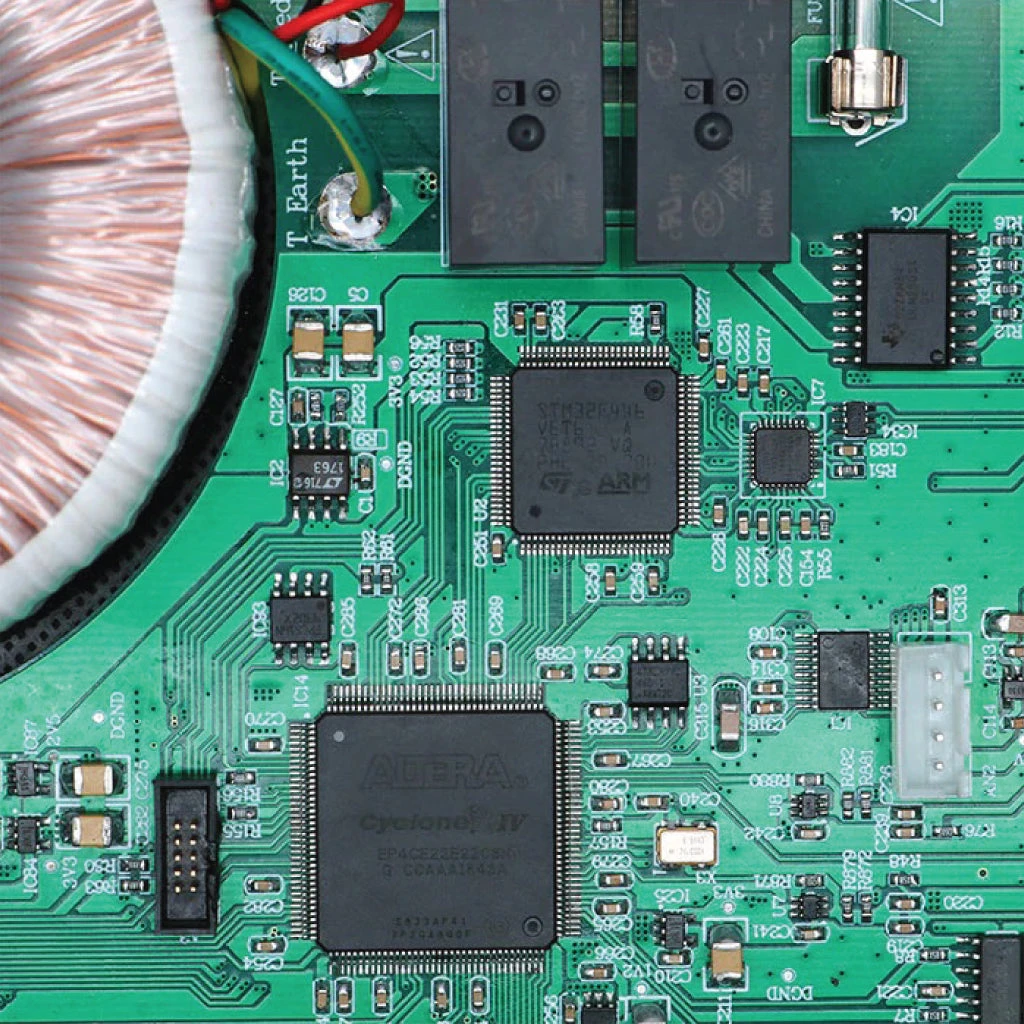

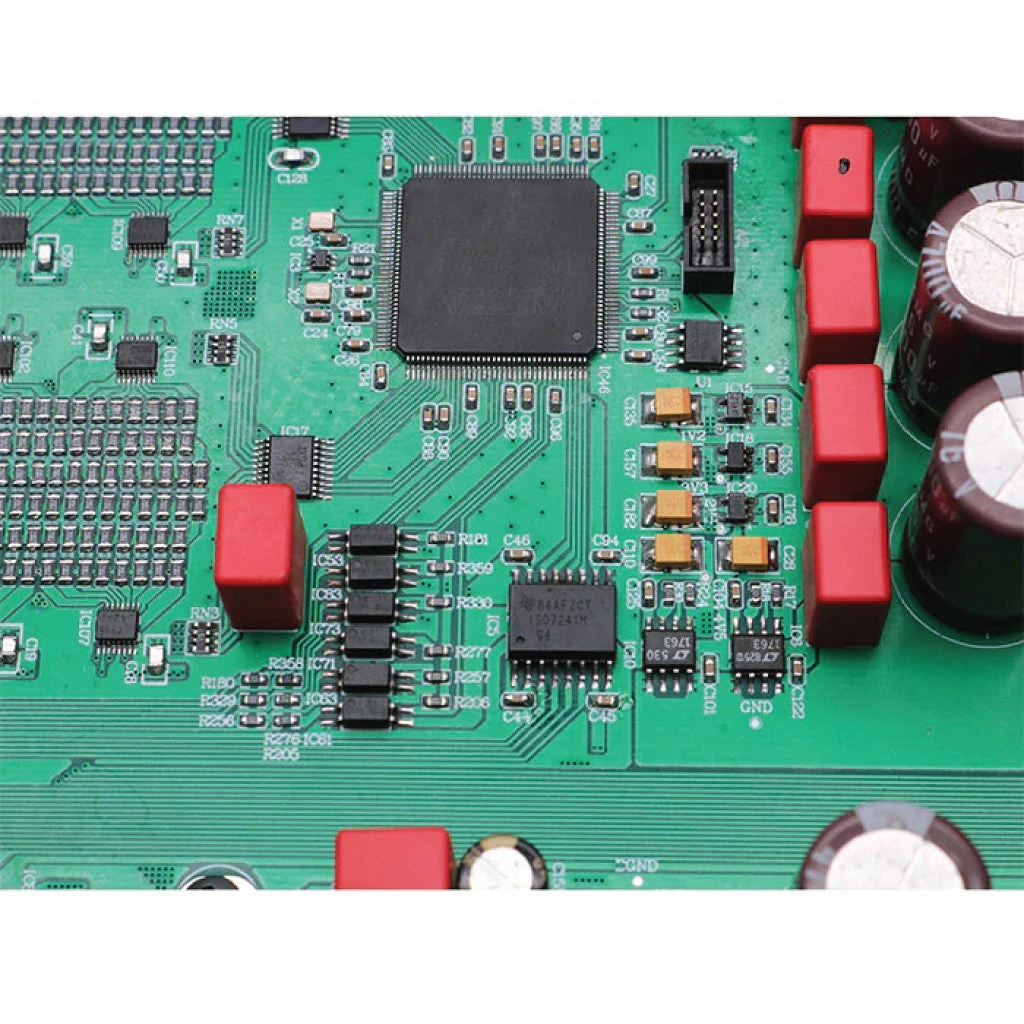

An R2R decoder is a discrete resistor network decoder. Altera Cyclone IV FPGA implementation combined with a FEMTO Crystal oscillation for DSP and jitter control.

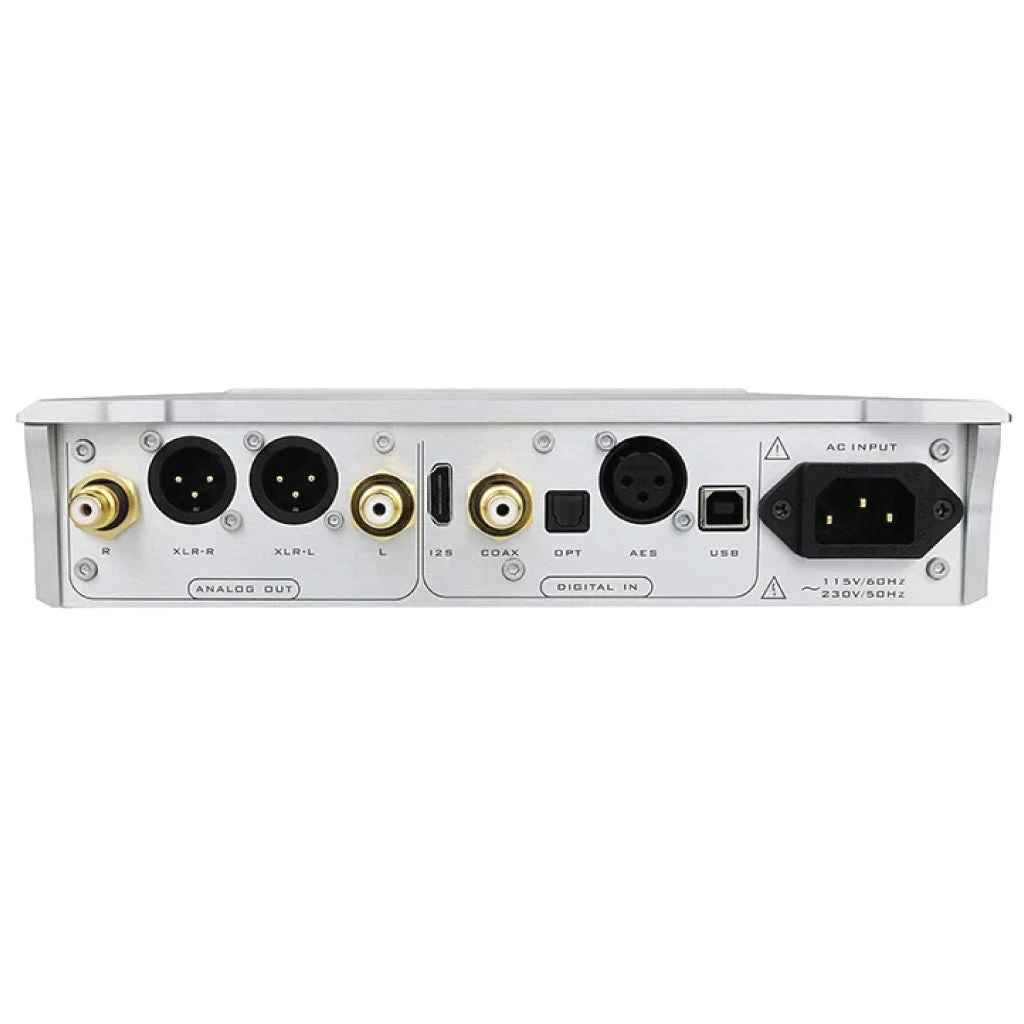

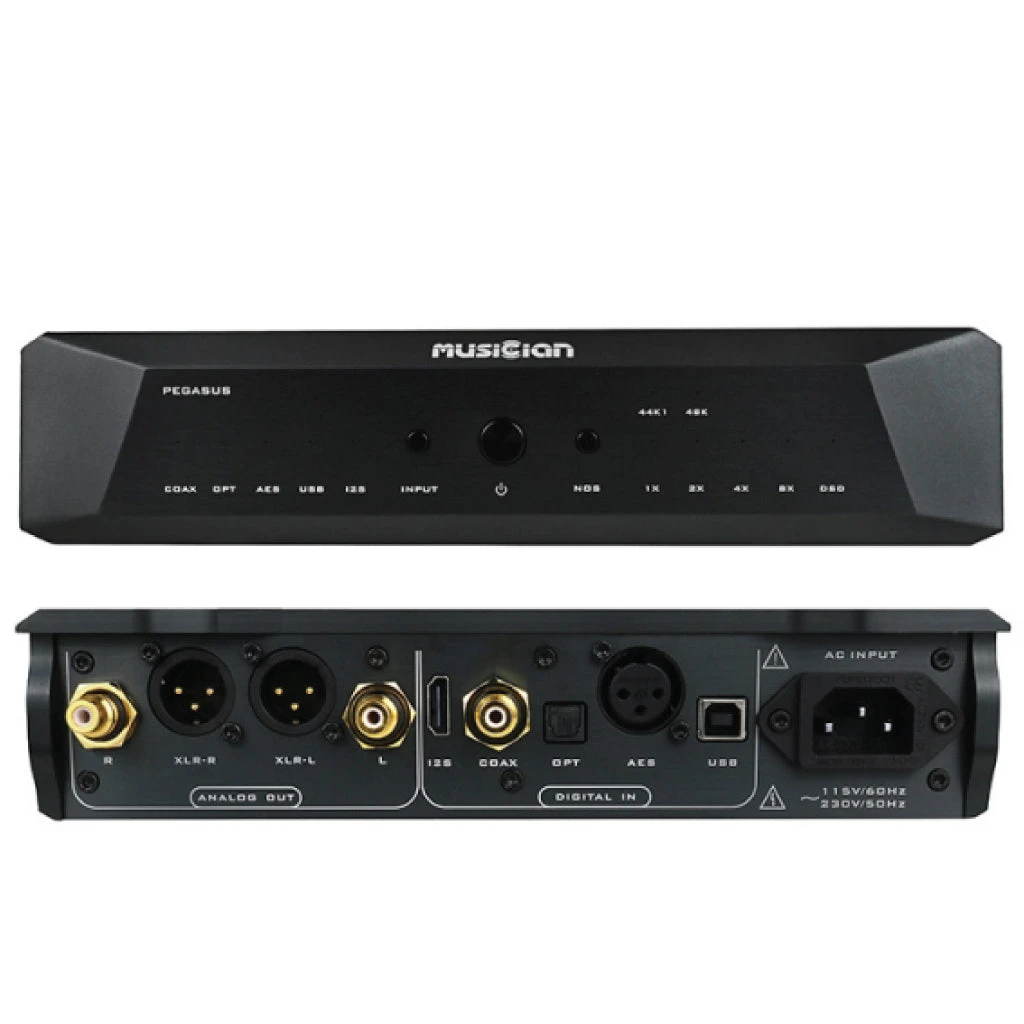

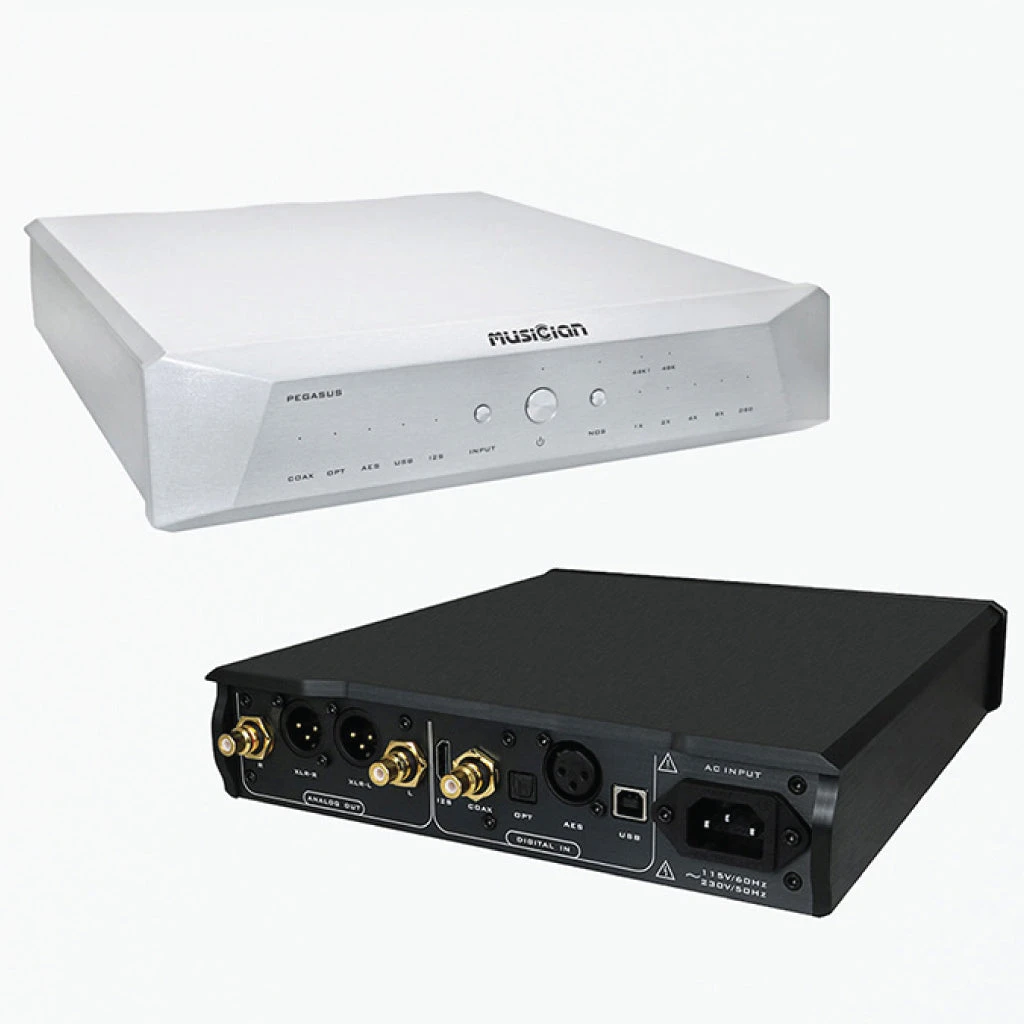

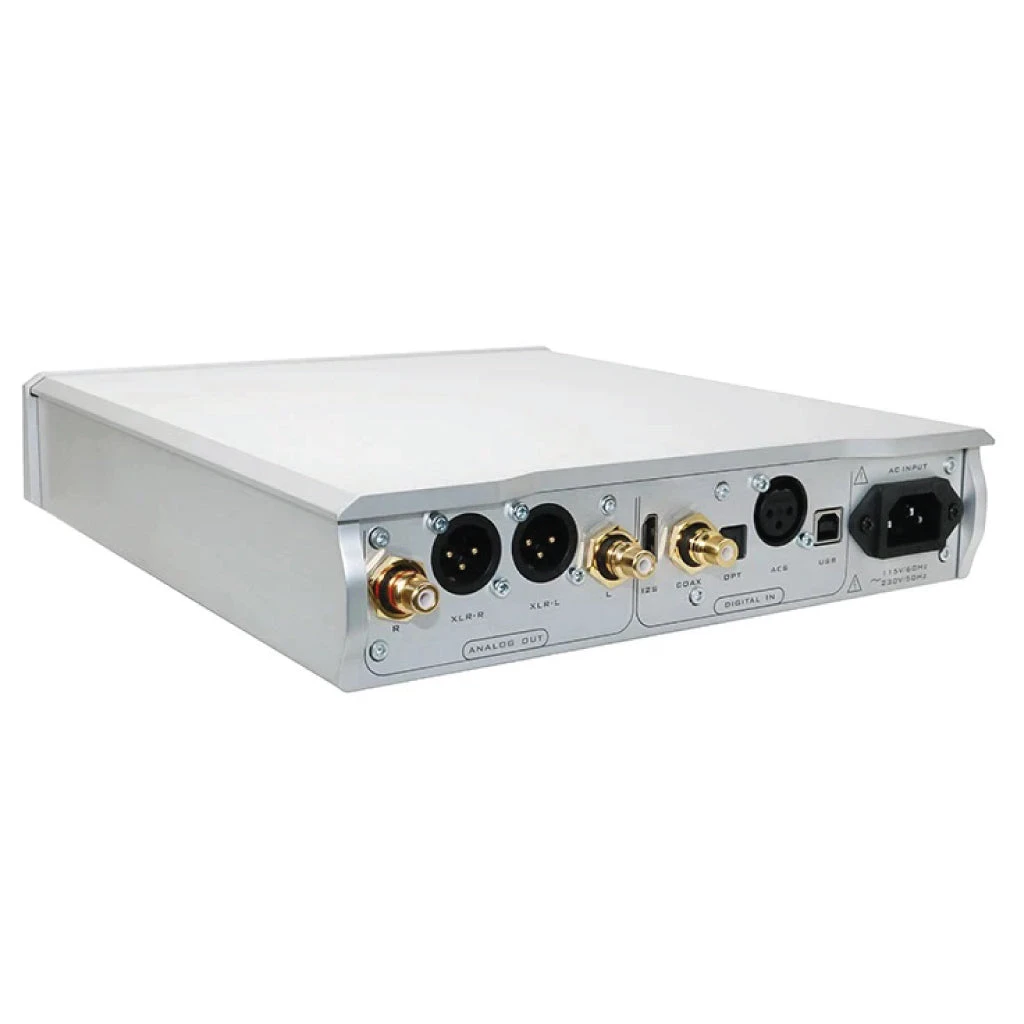

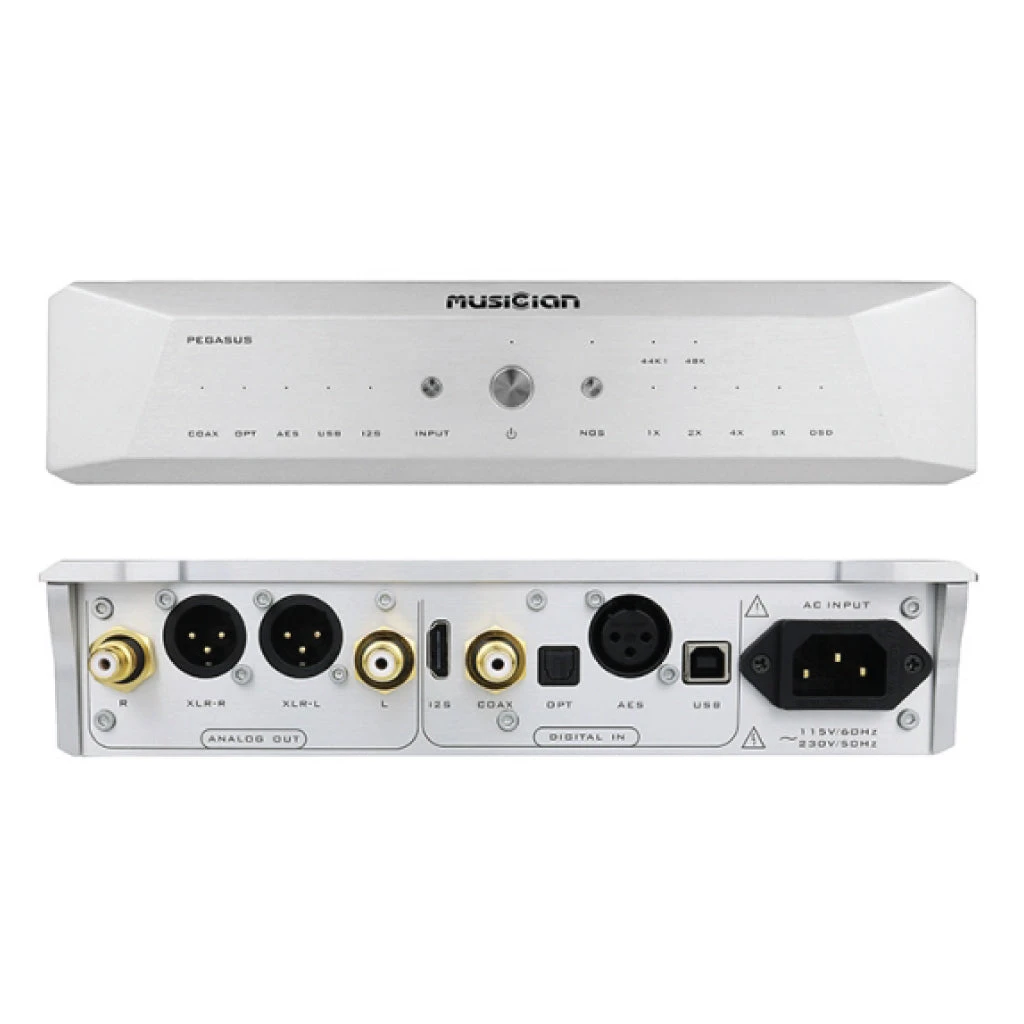

High-Performance DSD1024, PCM1536 support USB and I2S input (the input source must be compatible with the native interface). A Musician Pegasus offers most of the common connections common to HiFi devices today. The inputs include USB-B, I2S via HDMI, LVDS, AES/EBU, Toslink Optics, and Coaxial. Its outputs include unbalanced RCA jacks and balanced XLRs, the latter of which is the best for optimizing the device’s performance.

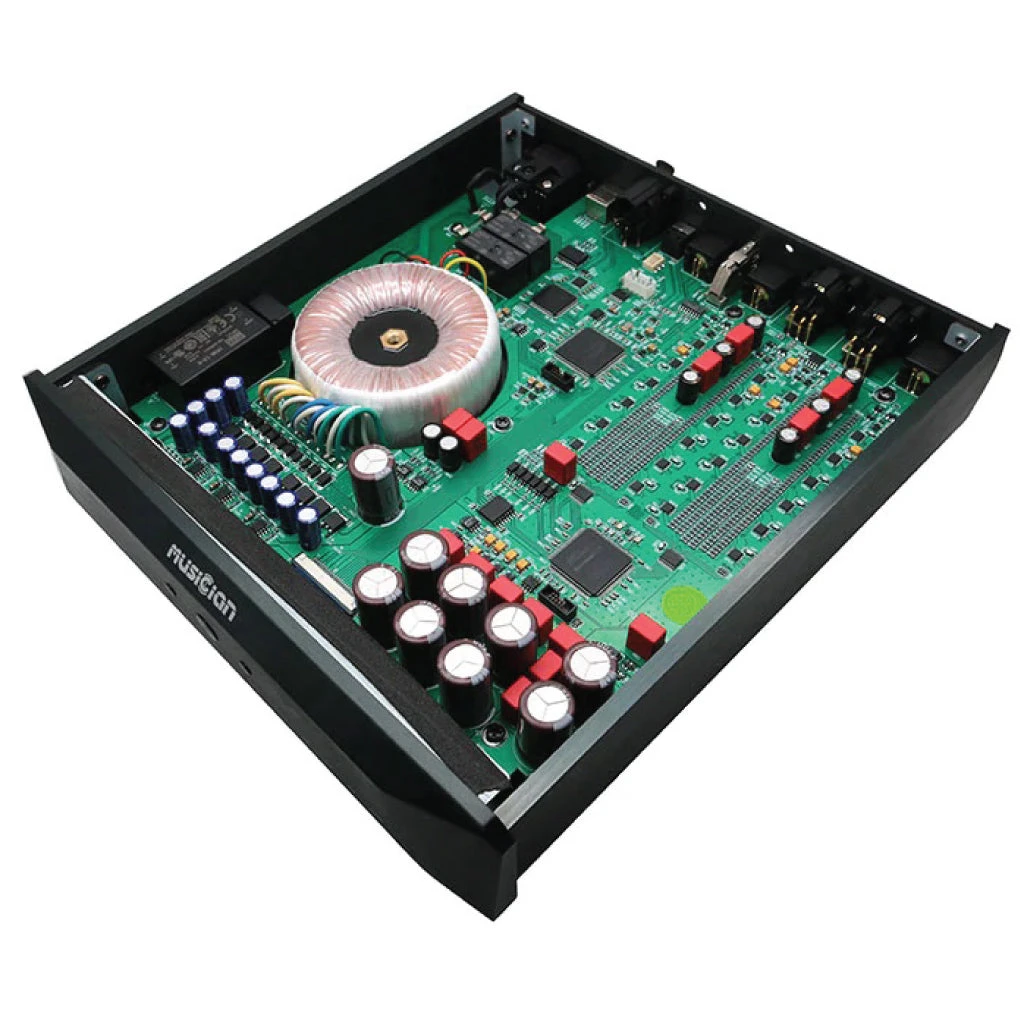

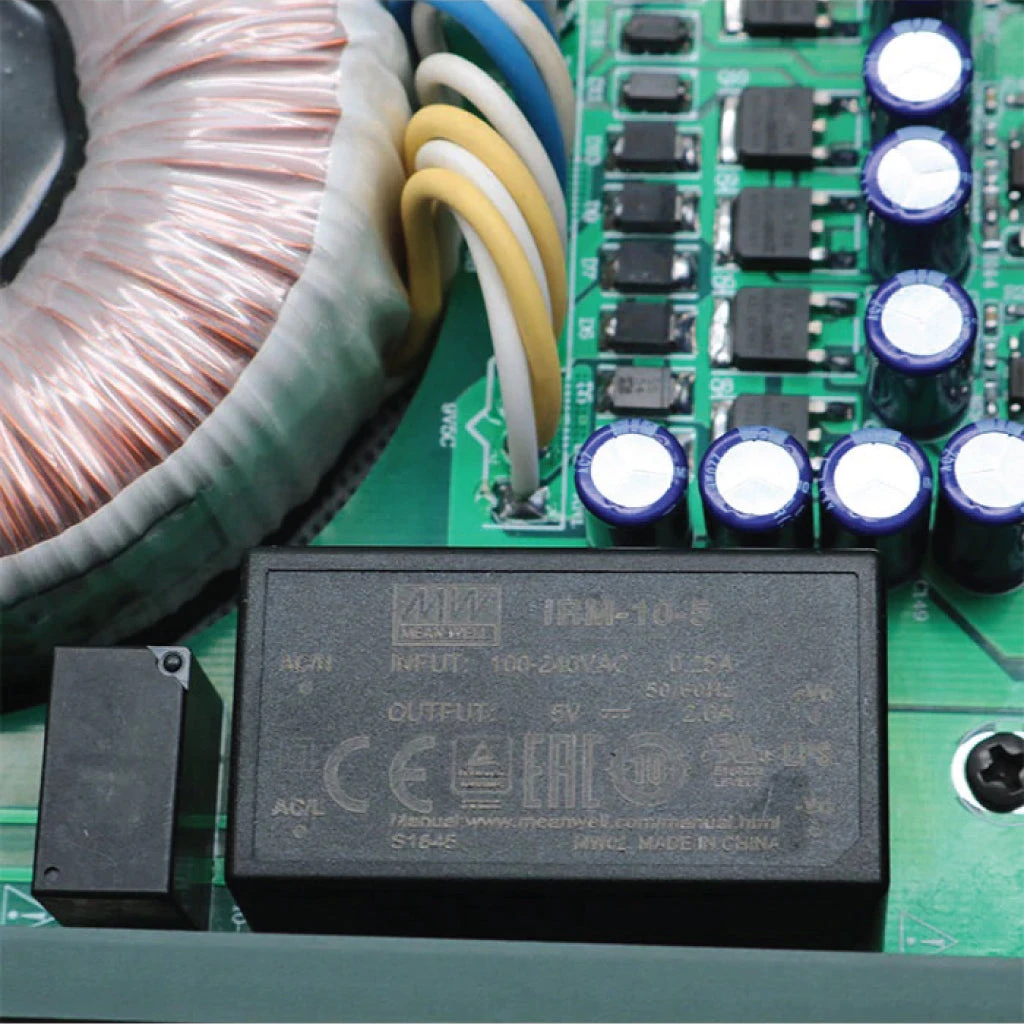

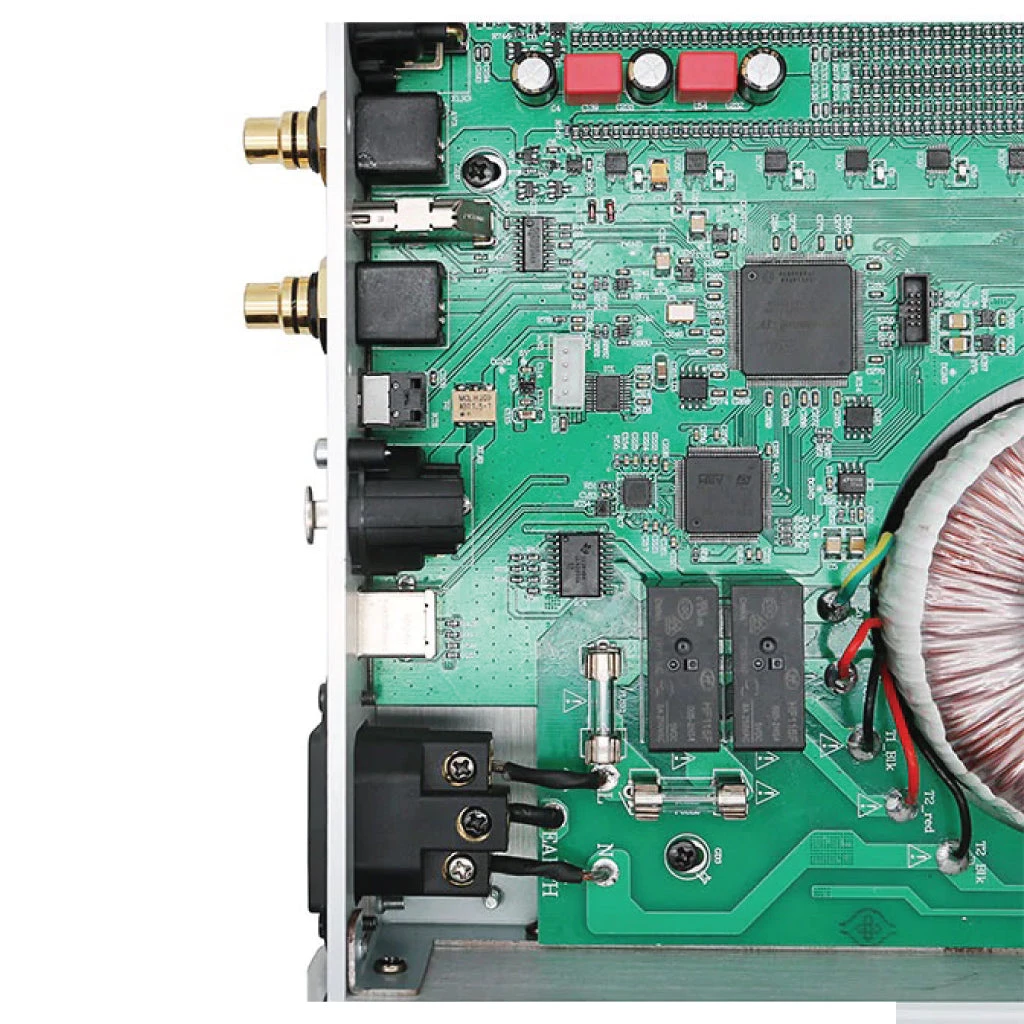

The device has a low-noise power supply that supports its high-performance integration of current technologies. Signal Processing by FPGA, the FIFO Buffer, and the FIR Filter.

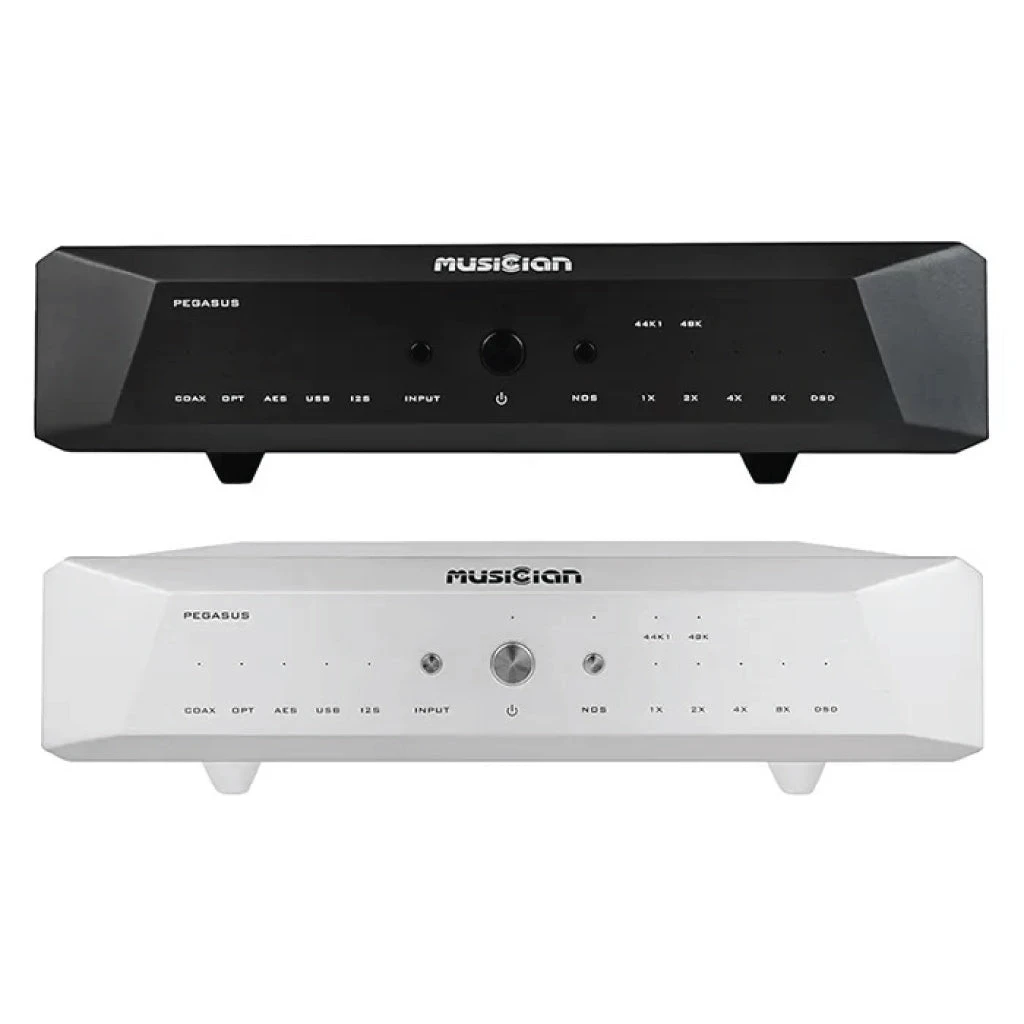

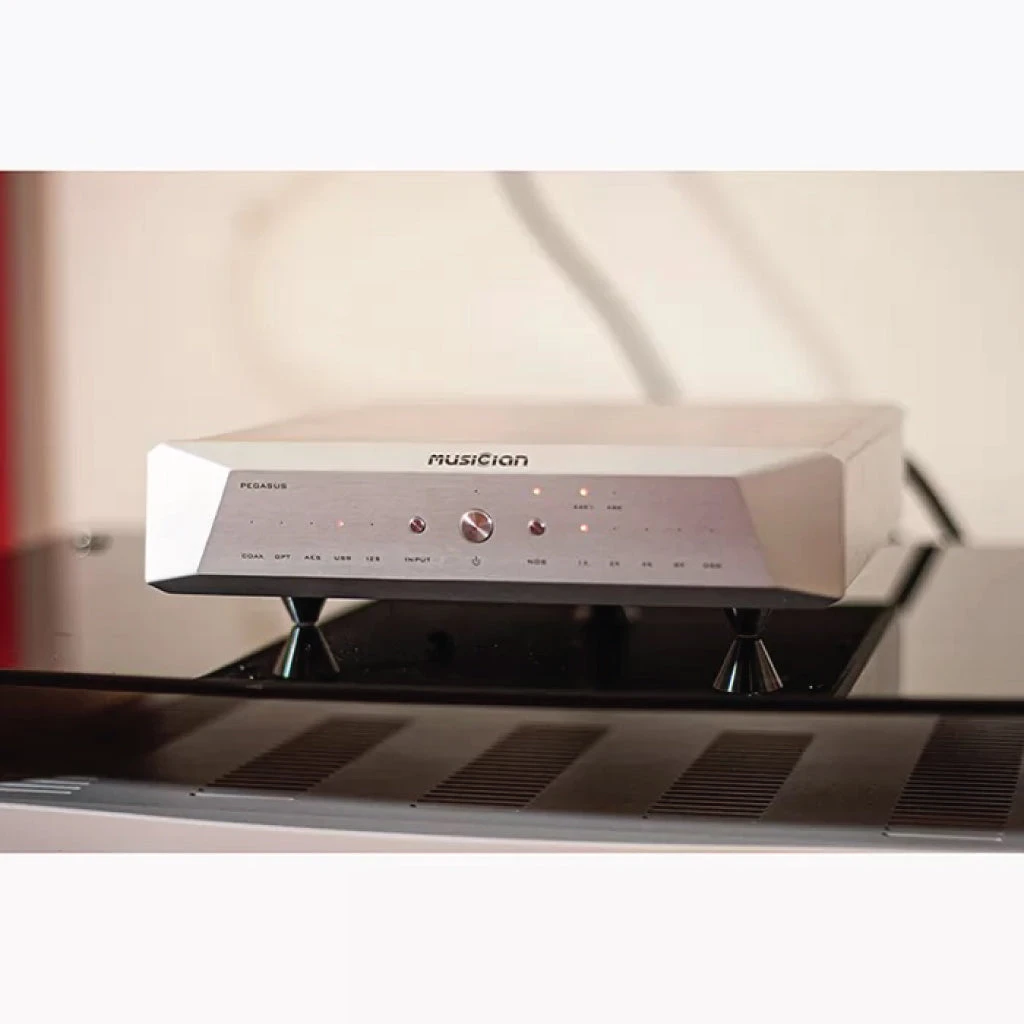

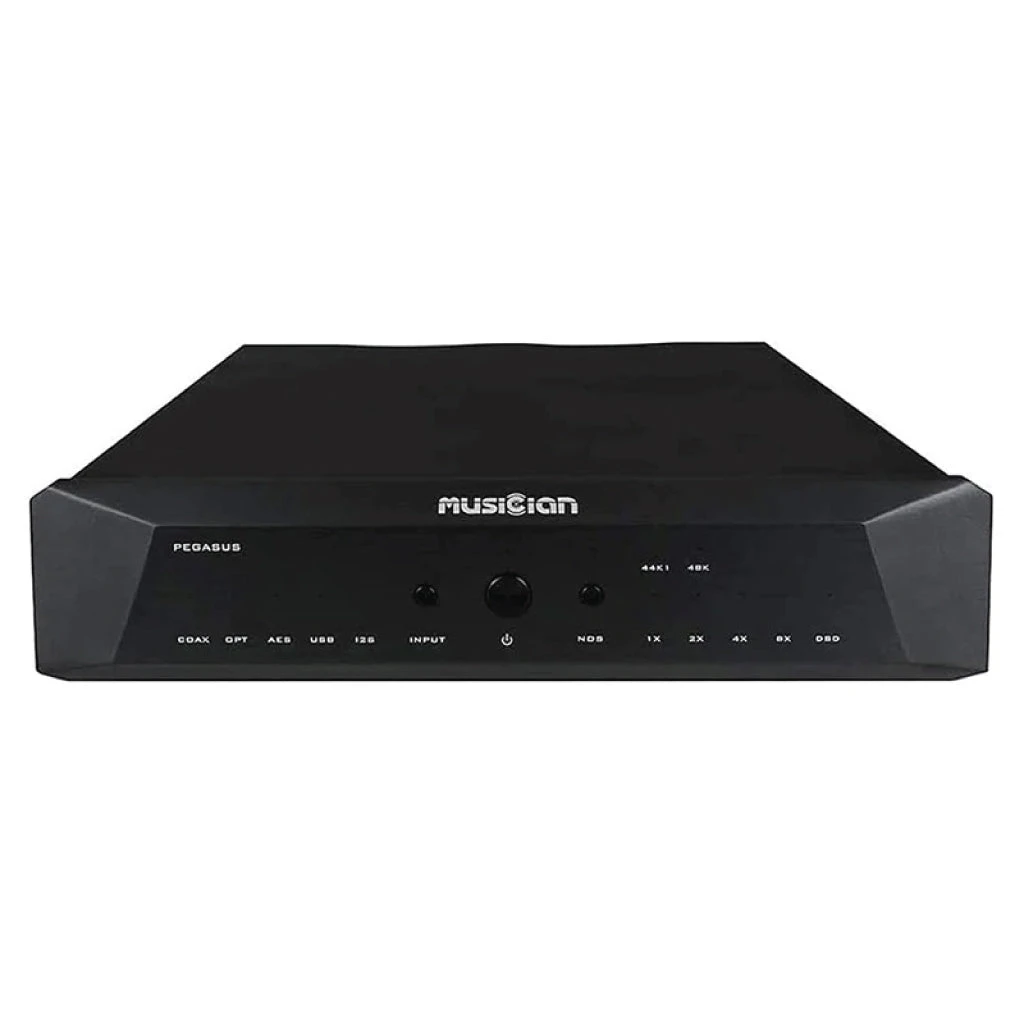

The Pegasus R2R DAC is a piece of attractive, fashionable equipment with a simple design and high-quality manufacturing.

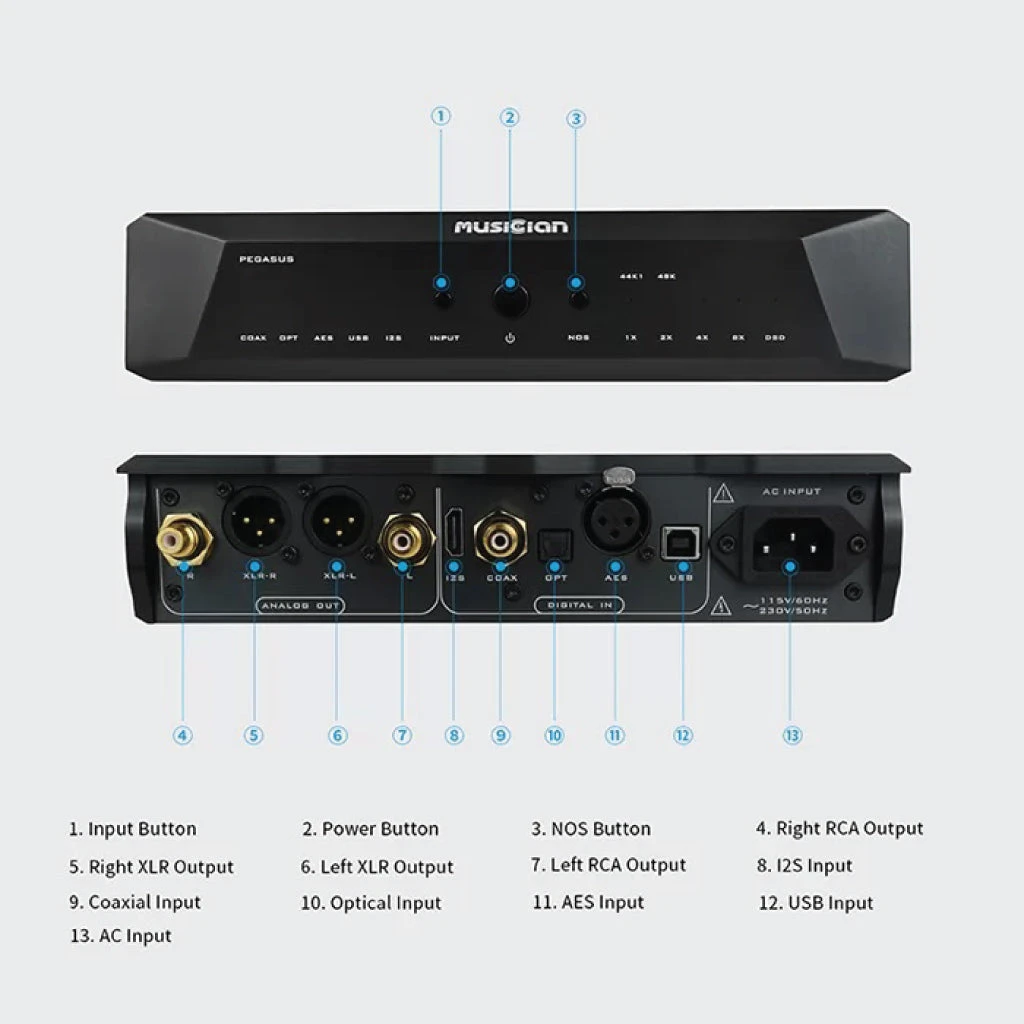

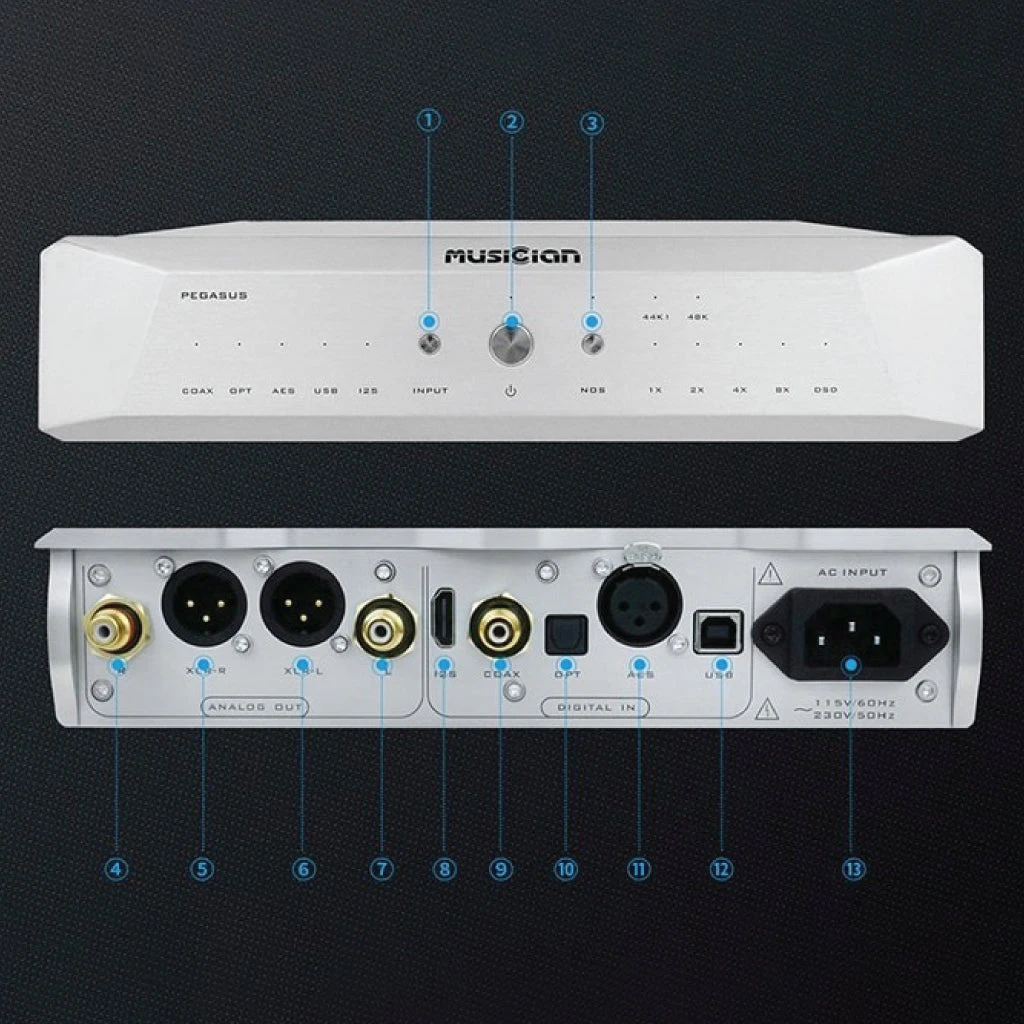

• Input Interface: Optical fiber, Coaxial, AES/EBU, I2S, USB all the way.
• Output Interface: The 3-prong XLR balanced outputs are rated for 4.4Vrms and the SE RCA outputs on either side are rated at a standard 2.2Vrms.

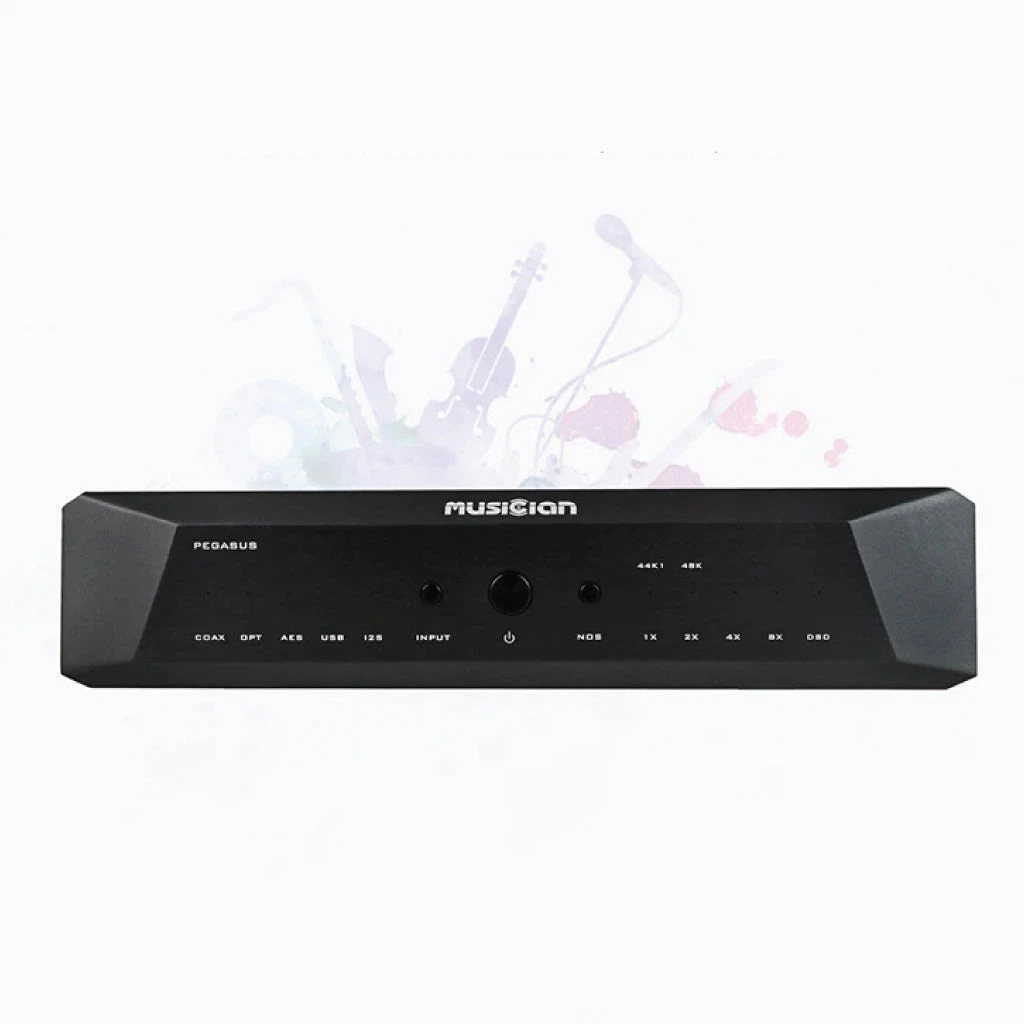

• Stand by: Standby/Start Button
• Input: Signal Input Selection Key
• NOS: Oversampling on/off button, the indicator is off forover sampling; the indicator is on the original sampling rate.

• A PEGASUS DAC burn-in is one week. Standby or powered on 24/7 (300 hours), You will get the best performance after the enough aging hours.
• Connecting RCA or XLR output simultaneously is not recommended. It will degrade the sound quality because they are shared. Even if the downstream equipment is on/off, the output signal will be transmitted to the input stage of the downstream device.
• If Possible, please use the XLR output. As a true balanced DAC, the XLR Output of PEGASUS will be more superior.
