S.M.S.L – Sanskrit 10th MKII DAC

The USB digital interface uses the XMOS asynchronous processing module. It was customized by Thesycon in Germany. When compared to the public version of the driver, the sound effect has improved, and supports both native DSD and DOP, support up to 32Bit/768Khz and DSD256 decoding, to real DSD Stream to the D / A Chip Decoding, Mac OS System driver-free. The output can be streamed to the D/A Chip, which requires no Mac OS System drivers. It can be configured to output at 32Bit/768kHz. The XMOS Processing module, which supports the OTG Function through the conversion line, can receive digital signals from mobile phones and iPads and realize high-definition decoding of PCM and DSD. Apple uses the Lightning USB Camera Adapter Cable, while Android uses the OTG Cable. We use audio-specific capacitors, low-noise op amps, and high precision low-noise resistors.

AKM’s latest performance DAC chip AK4493, It has been carefully adjusted by talented engineers to achieve an unprecedented low distortions of 0.0002% (-113Db).2 Japanese NDK ultra-low phase noise clocks, greatly reducing the system Jitter. Low noise power purification system for optimal performance via USB Power only.

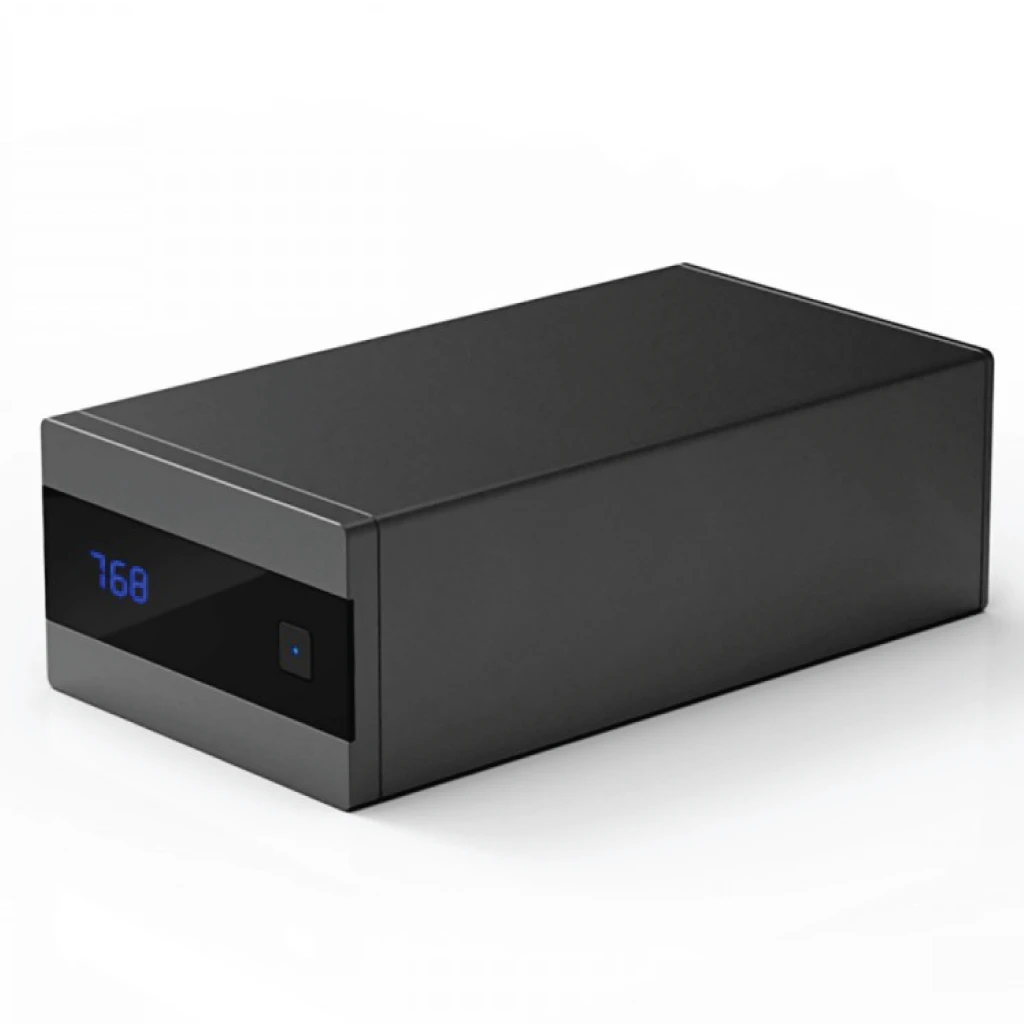

The professional shape design uses an anodized CNC aluminum alloy housing.

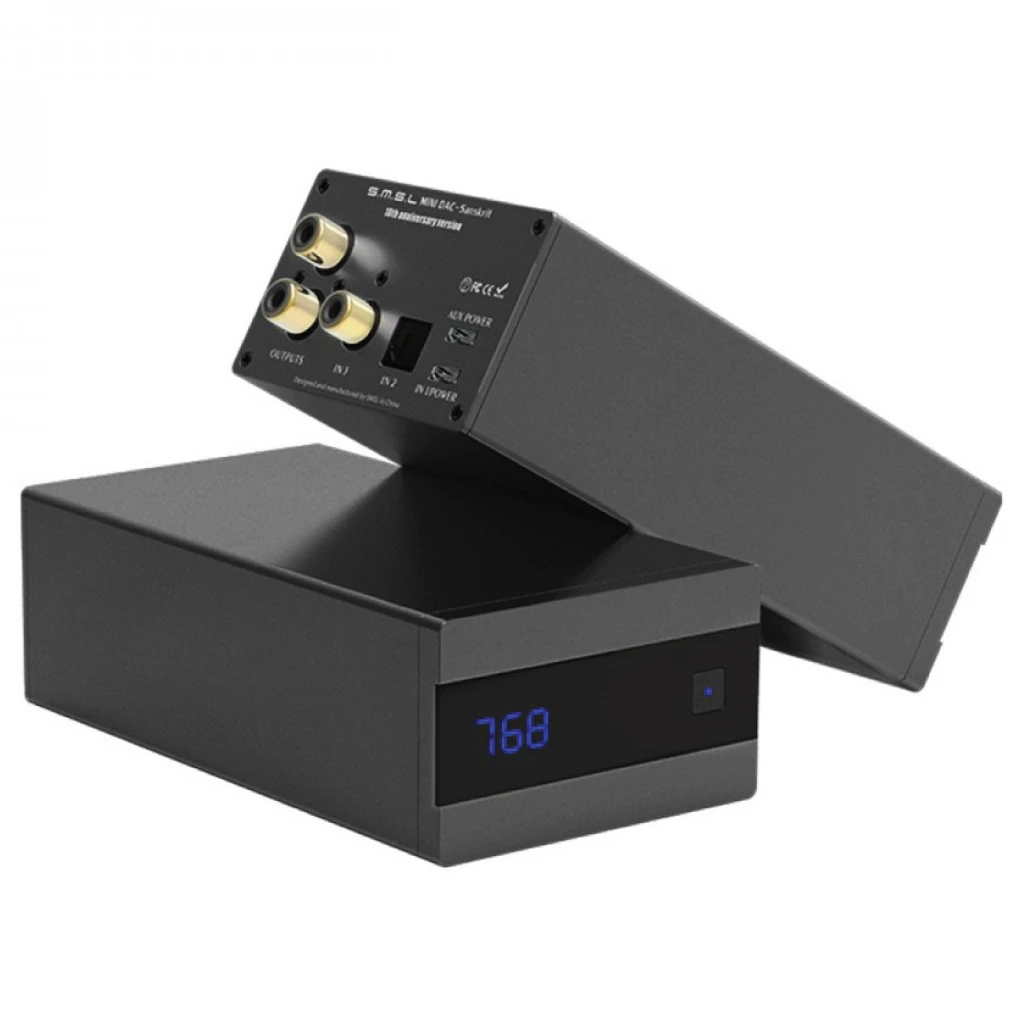

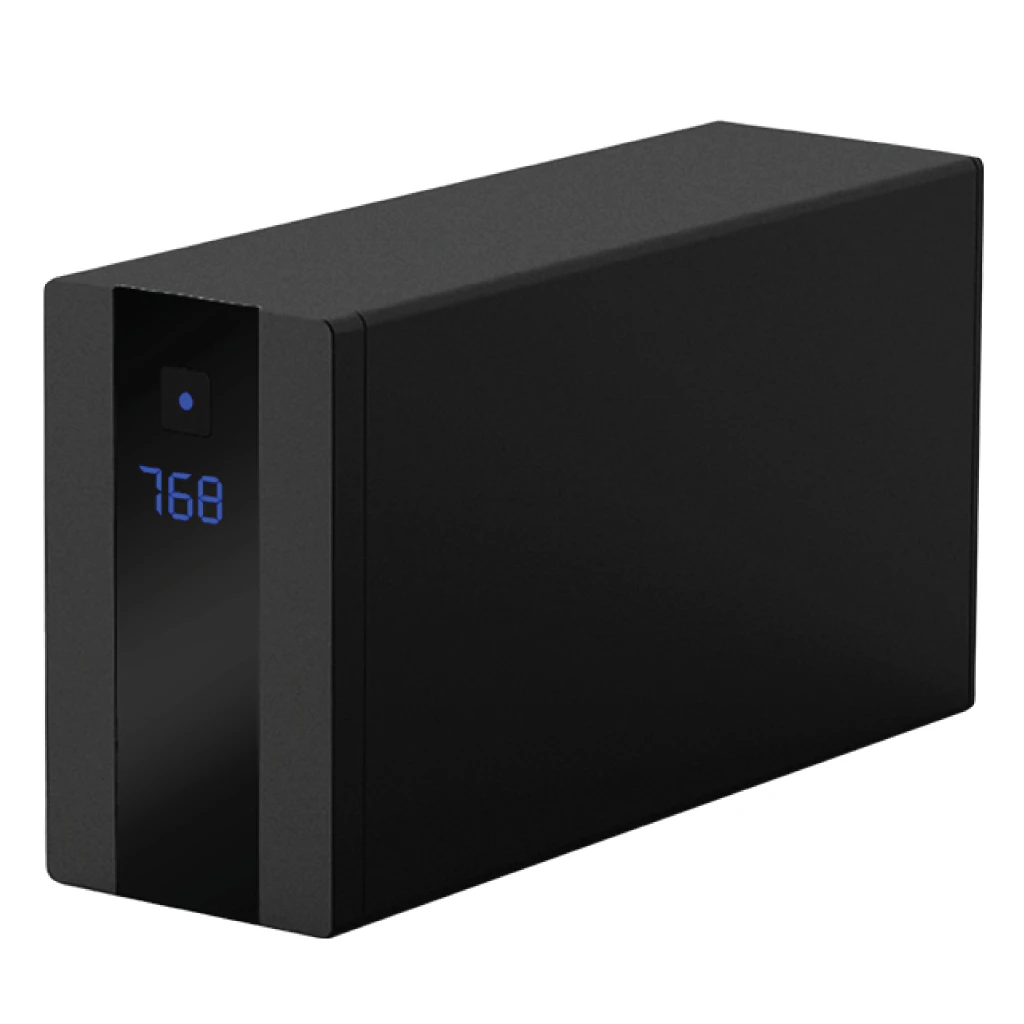

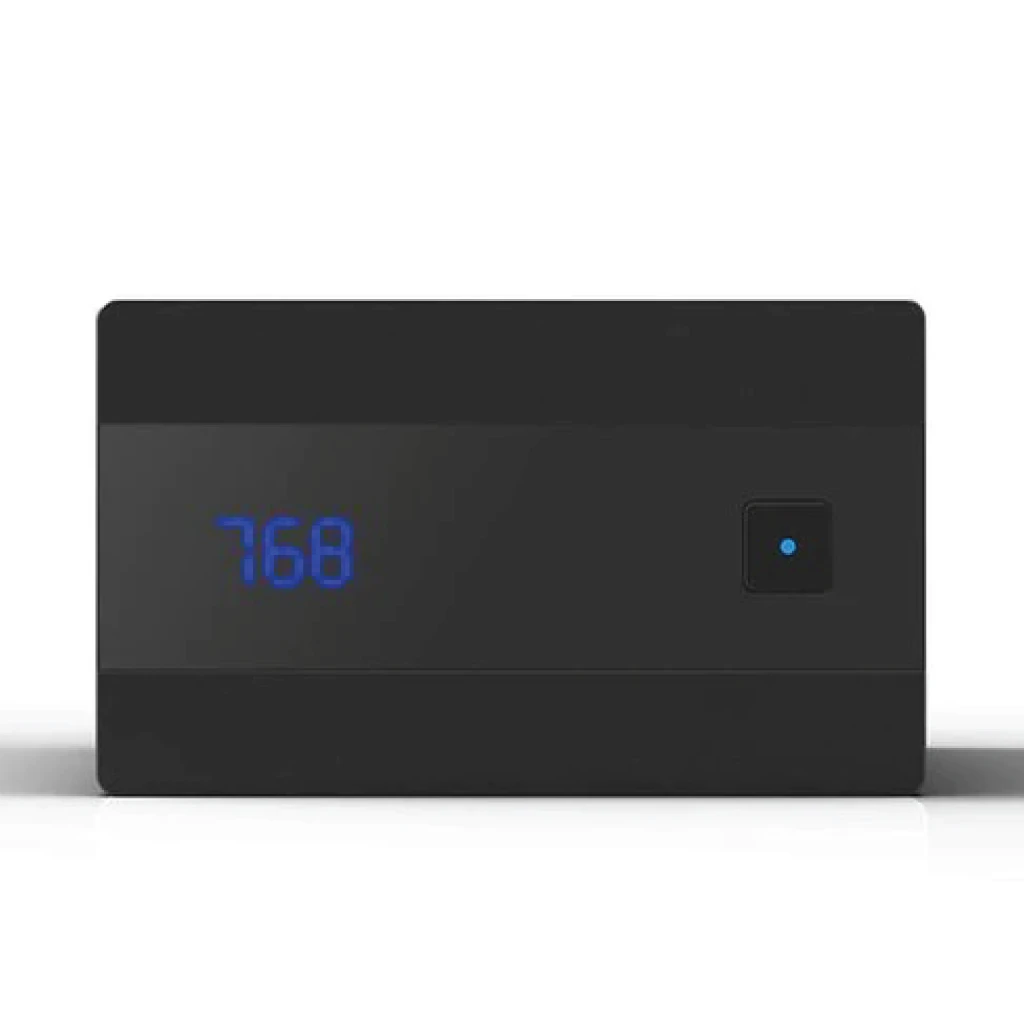

Sanskrit is designed to take up minimal desktop space. It has three display modes as shown below. In these three display modes, it has built in digital accelerometer, so, it automatically switches the orientation of the display.

Standard compact remote control for easily volume control and easy to use.

Compatible with mobile phones, iPad, Computers and other devices and compatible with Android, Apple System.

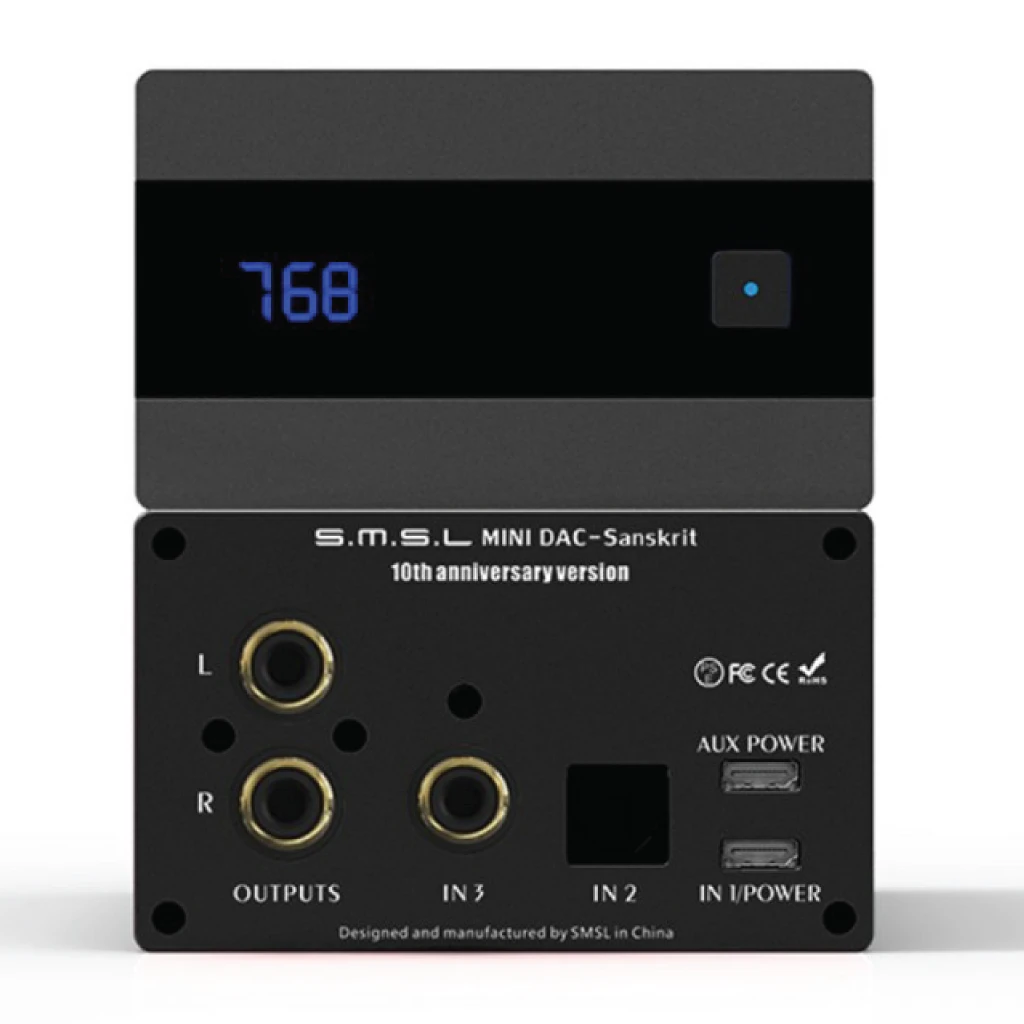

1. Infrared Remote control receiving window
2. Display (Automatic switching)
3. Power/input selection button
4. Audio Output (RCA)
5. Coaxial output
6.Optical Input
7. USB Input
8. Auxiliary power input
