Brand
SHANLING
Product Name
UA2 Plus
DAC Chip
ES9038Q2M

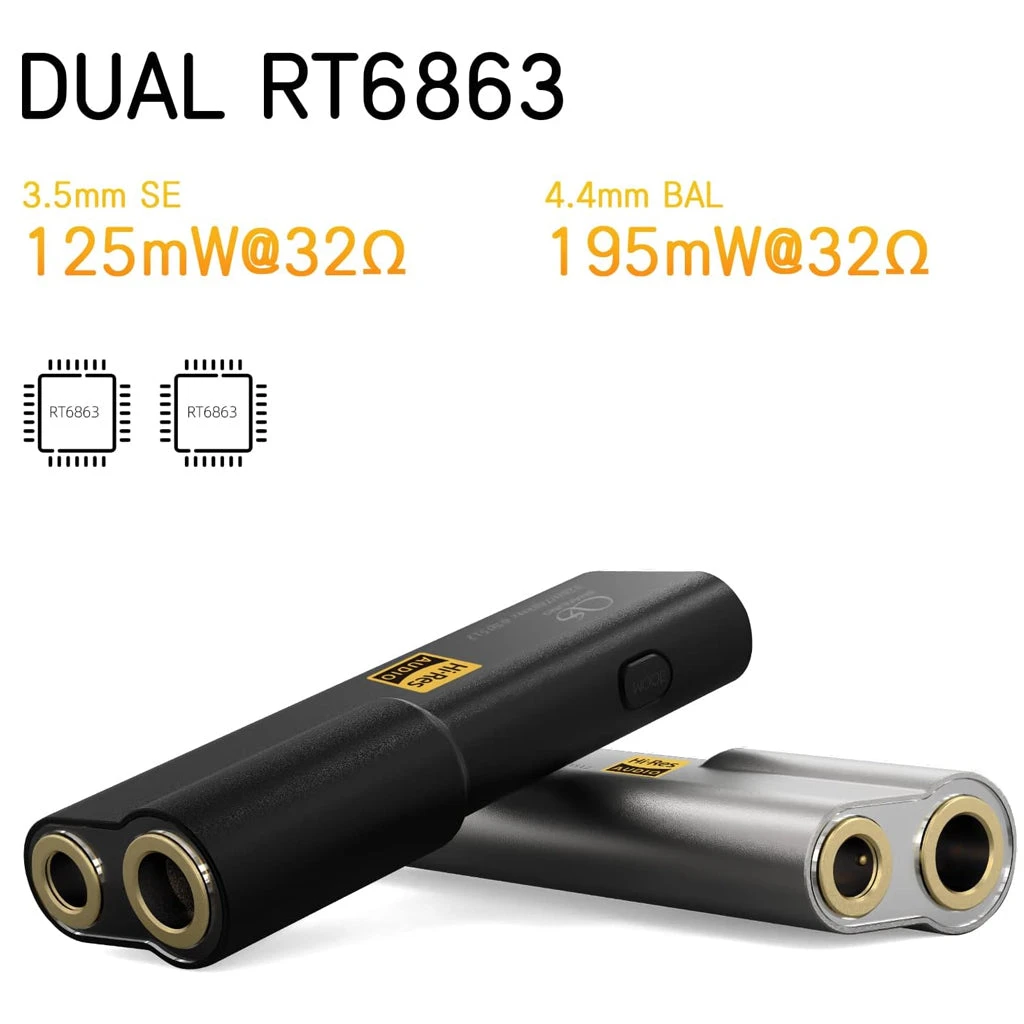

Independent Amplification Chips
Dual RT6863
PCM
32-Bit/768kHz PCM
Native
DSD512 Signal Decoding
Headphone Output Ports
3.5mm+4.4mm
4.4mm Balanced Output
Output Power: 2.5V @ 32Ω (195mW@32Ω)
Frequency Response: 20Hz – 40kHz (-0.5dB)
Signal To Noise Ratio: 117dB @ 32Ω (A-Weighting)
Channel Separation: 109dB @ 32Ω
Dynamic Range: 120dB @ 32Ω (A-Weighting)
THD+N: 0.0008% @ 32Ω (A-Weighting @0.5V)
Output Impedance: 1.0 Ω
Frequency Response: 20Hz – 40kHz (-0.5dB)
Signal To Noise Ratio: 117dB @ 32Ω (A-Weighting)
Channel Separation: 109dB @ 32Ω
Dynamic Range: 120dB @ 32Ω (A-Weighting)
THD+N: 0.0008% @ 32Ω (A-Weighting @0.5V)
Output Impedance: 1.0 Ω
Nintendo Switch Mode
Yes
Compatibility
Android, iOS, Windows, Mac System Support
3.5mm Single Ended Output
Output Power: 2V @32Ω (125mW@32Ω)
Frequency Response: 20Hz – 40kHz (-0.5dB)
Signal To Noise Ratio: 121 DB @ 32Ω (A-Weighting)
Channel Separation: 71 DB @ 32Ω
Dynamic Range: 121 DB @ 32Ω (A-Weighting)
THD+N: 0.0008% @ 32Ω (A-Weighting @0.5V)
Output Impedance: 0.5 Ω
Frequency Response: 20Hz – 40kHz (-0.5dB)
Signal To Noise Ratio: 121 DB @ 32Ω (A-Weighting)
Channel Separation: 71 DB @ 32Ω
Dynamic Range: 121 DB @ 32Ω (A-Weighting)
THD+N: 0.0008% @ 32Ω (A-Weighting @0.5V)
Output Impedance: 0.5 Ω
