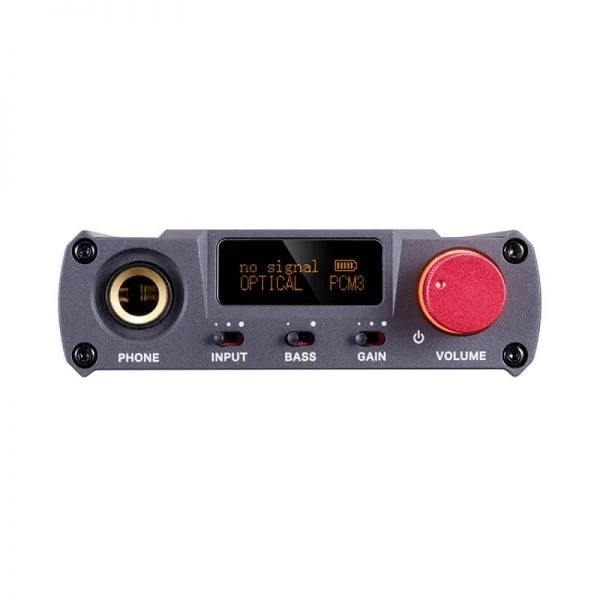

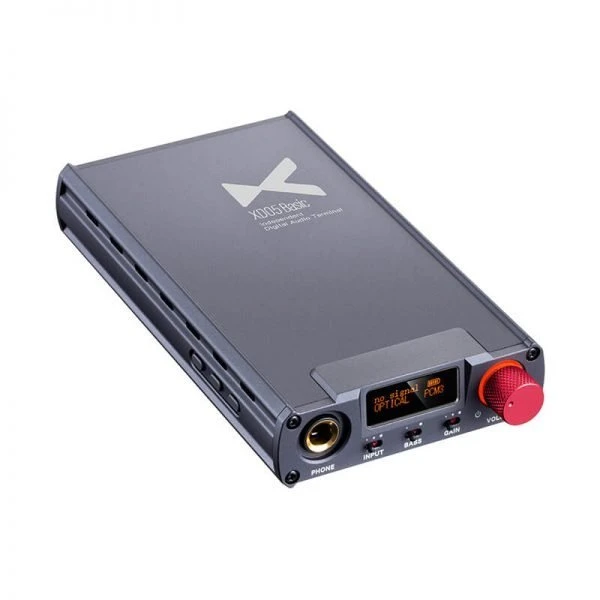

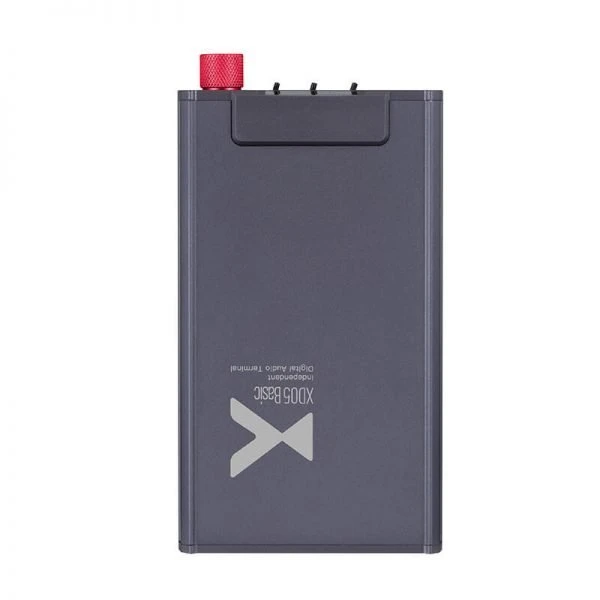

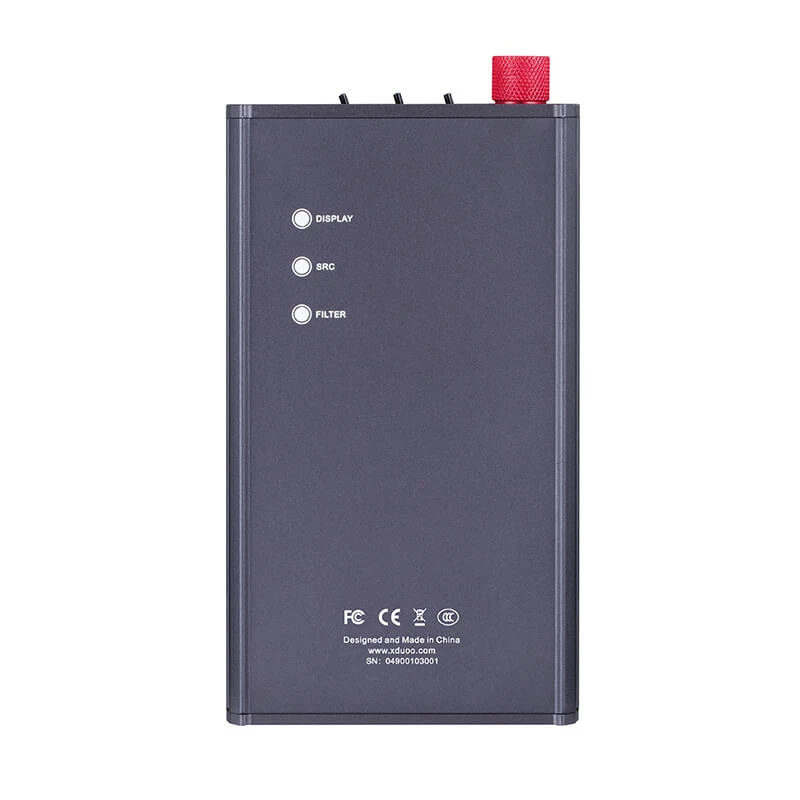

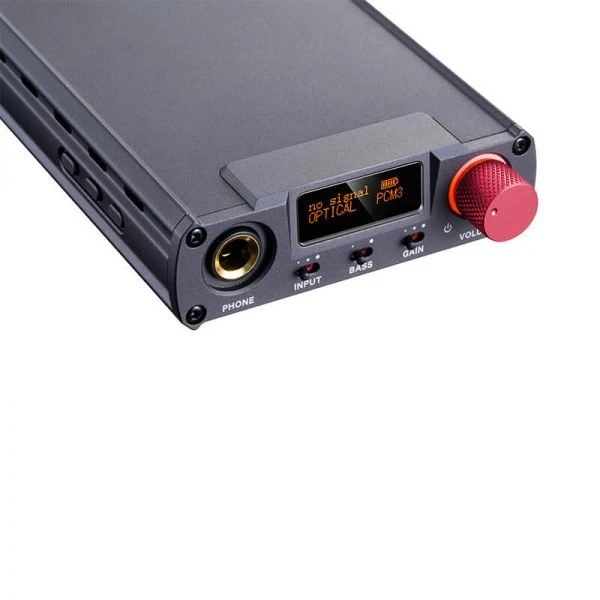

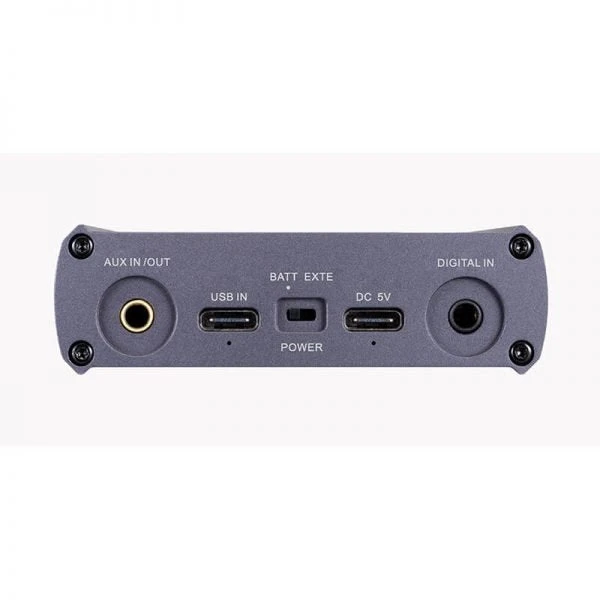

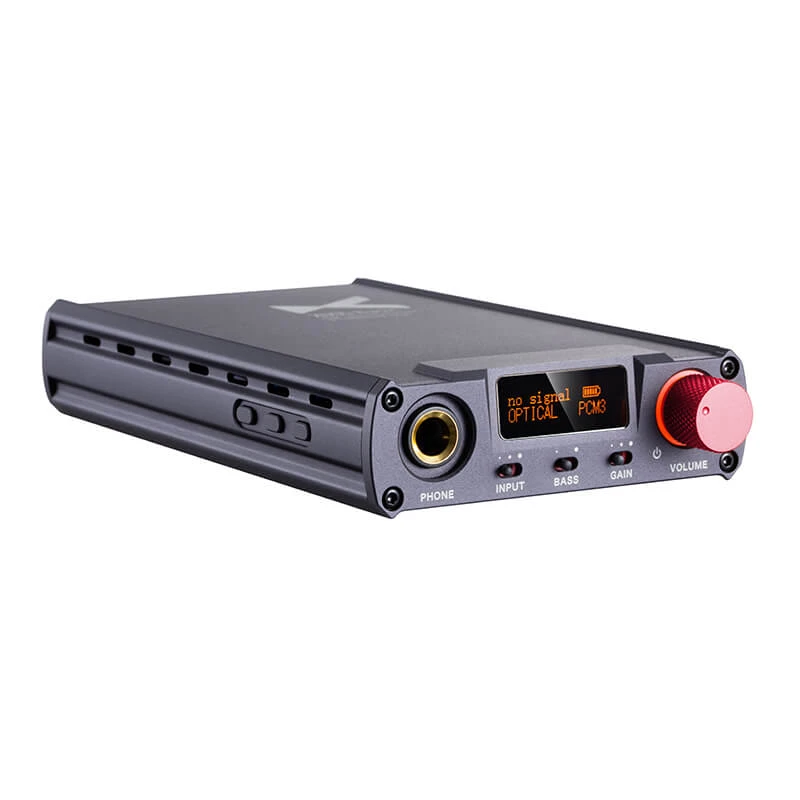

XDUOO XD-05 Basic AK4490 PCM384KHz DSD256 XMOS XU208 HiFi Protable Headphone Amplifier

• Powerful game audio and video capabilities— Portable XD-05 Basic provides high-quality audio and video performance with its compact form. It can be compatible with desktop, notebook, tablet or other smart devices, providing high-quality audio experience for PC, PS4, XBOX and other gaming platforms.
• An immersive experience— Using professional digital and analog audio circuits to create almost real surround sound effects on headphones and active speakers, allowing you to take the lead in every game
• Personal sound enhancement system— Flexible matching of different impedance headsets.On-demand design is adopted on the output of the earphone, which is flexible to match the correct output power.Your headphones optimize the volume for playing games or listening to music while reducing the volume.Less computer output distortion at high volume without increasing background noise/nRespond quickly.
• Heavy Bass, loud field to reproduce the sound effects of the bomb— Bass switches through hardware physics to speed up, bring the game and movie action movies in the hot scenes, feel the shock sound effects, whether 3A or Hollywood blockbuster more magnificent, immersive.
• Improving the quality of low bit rate music— Through the hardware SRC function, the low bit rate audio file will be raised to 48KHz/96KHz/192KHz, optimizing the details of the audio file, true restoration of the details of music, so as to make the sound more natural and smooth.
• One Year Warranty

Product Parameters:

1. Audio processor: AKM AK4490
2. Gain: + 6dB/9dB/16dB
3. Signal to noise ratio (SNR) : 115dB
4. BASS upgrade: 0/+6 db
5. Frequency response:
6. USB/FIBER/COAXIAL: 20Hz ~ 20 kHz (±0.5 dB)
7. AMP:10 Hz~60kHz(±0.5dB)
8. Harmonic distortion:
9. USB : 0.0025%@1kHz Coaxial: 0.0025%@1kHz
10. Optical Fiber: 0.0025%@1kHZ
11. AUX IN: 0.0018%@1kHz
12. Maximum output power: 500mW (32Ω load)
13. Resolution: ≥75dB
14. Charging time: fast charge 1.2A ≤5 hours slow charge 500MA ≤11 hours
15. Endurance time: USB IN ≥9h AUX IN ≥16H coaxial/optical fiber ≥12H
16. USB support sampling rate
17. PCM: 16-32bit/44.1-384kHz
18. DSD: DOP/NATIVE mode, DSD64-256
19. DXD:24-32 bit/352.8-384kHz
20. Optical Fiber/COAXIAL support sampling rate: PCM: 16-24 bit/44.1-192 Khz
21. Applicable system：Win 7, Wind 8, Win 10, Mac OS X, IOS, Android

Package Includes:

1. XD-05 Basic*1
2. TYPE-C USB Cable*1
3. TYPE-C TO TYPE-C USB OTG Cable*1
4. TYPE-C TO MICRO USB OTG Cable*1
5. USB A to Type-C plug*1
6. 6.5 to 3.5mm headphone Plug*1
7. Silicone foot pads*10
8. Magic Velcro*1
9. User Manual*1
