XDuoo – XD05 Balanced DAC & Amp

xDuoo’s XD05 Bal is a fully balanced digital-to-analog circuit. This eliminates noise interference and crosstalk between sounds caused by shared ground wires and also greatly improves separation and reduces background noise for an enjoyable listening experience.

XD05 Bal reduces THD (Total Harmonic Distortion) down to a mere 0.0009%. The device also has crosstalk up to 100 dB and the S/N up to 117 dB which makes the noise almost inaudible.

xDuoo XD05 Balance DAC can be connected to the USB interface of a computer, mobile phone, tablet and HIFI players for easy use. The device supports up to PCM32bit/768KHz & DSD512. The unit can be even connected to desktop CD players and various digital turntables via HD coaxial or optical input. It supports up to PCM 24bit/192 kHz & DSD64. AES input which is balanced digital input, all balance from digital to analog balanced output, allowing you have a new experience.

The device can also be connected to various Bluetooth playback devices with support for SBC, AAC, aptX, aptX LL, aptX HD and LDAC format transmission.

This DAC adopts imported professional chips and high-end capacitors to ensure high fidelity sound quality. By Using Dual Chip ES9038Q2M as the decoding chip, the sound quality is even better. XD05 Bal also adopt CPLD for data reshaping, realize the accurate clock synchronization and reduce Jitter.

XD05’s small body packs a powerful punch with an output of 1000mW via the single-ended and balanced output. This is no small feat as this throughput is enough to drive the most demanding headphones.

xDuoo XD05 Balance is designed it to be easy to install op amp Chips, so that you can change different models of OP amp chips by yourself, and hear the different sound quality brought by different chips, which is endless fun.

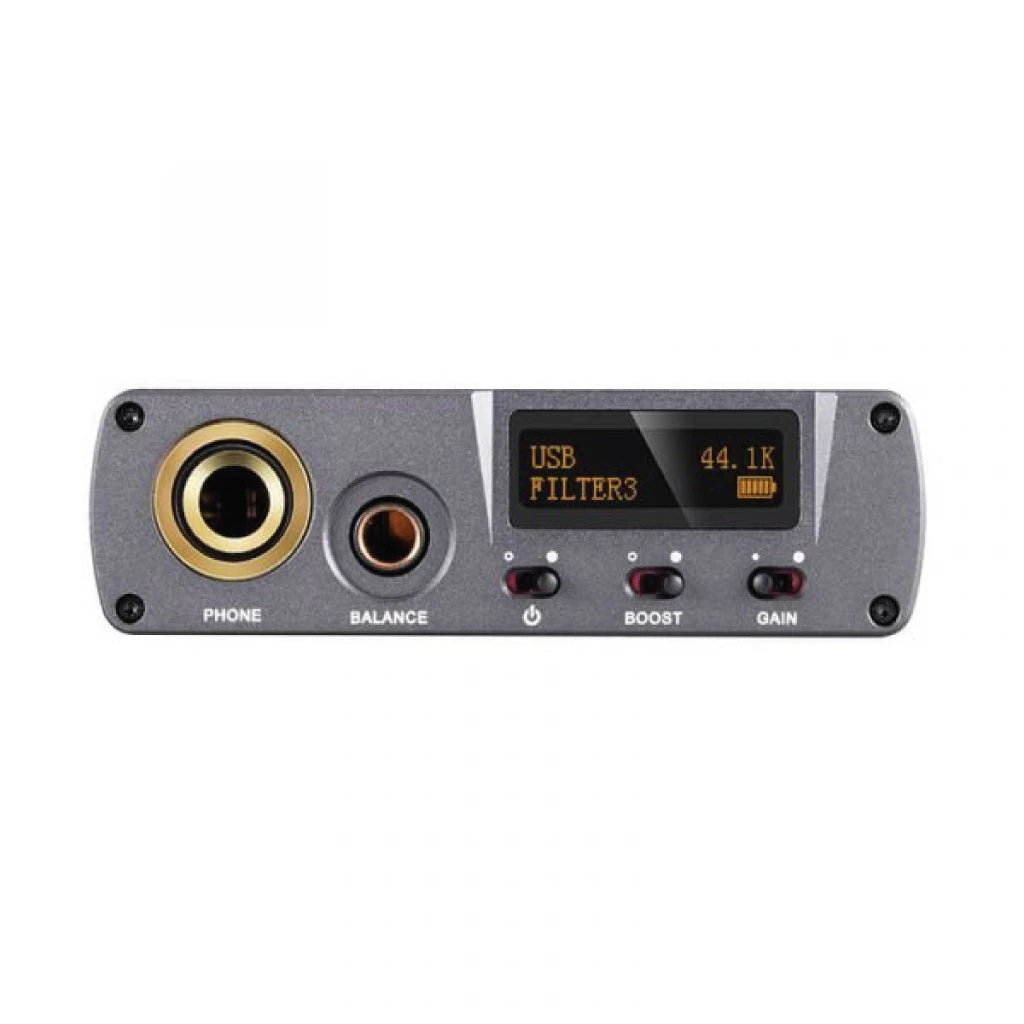

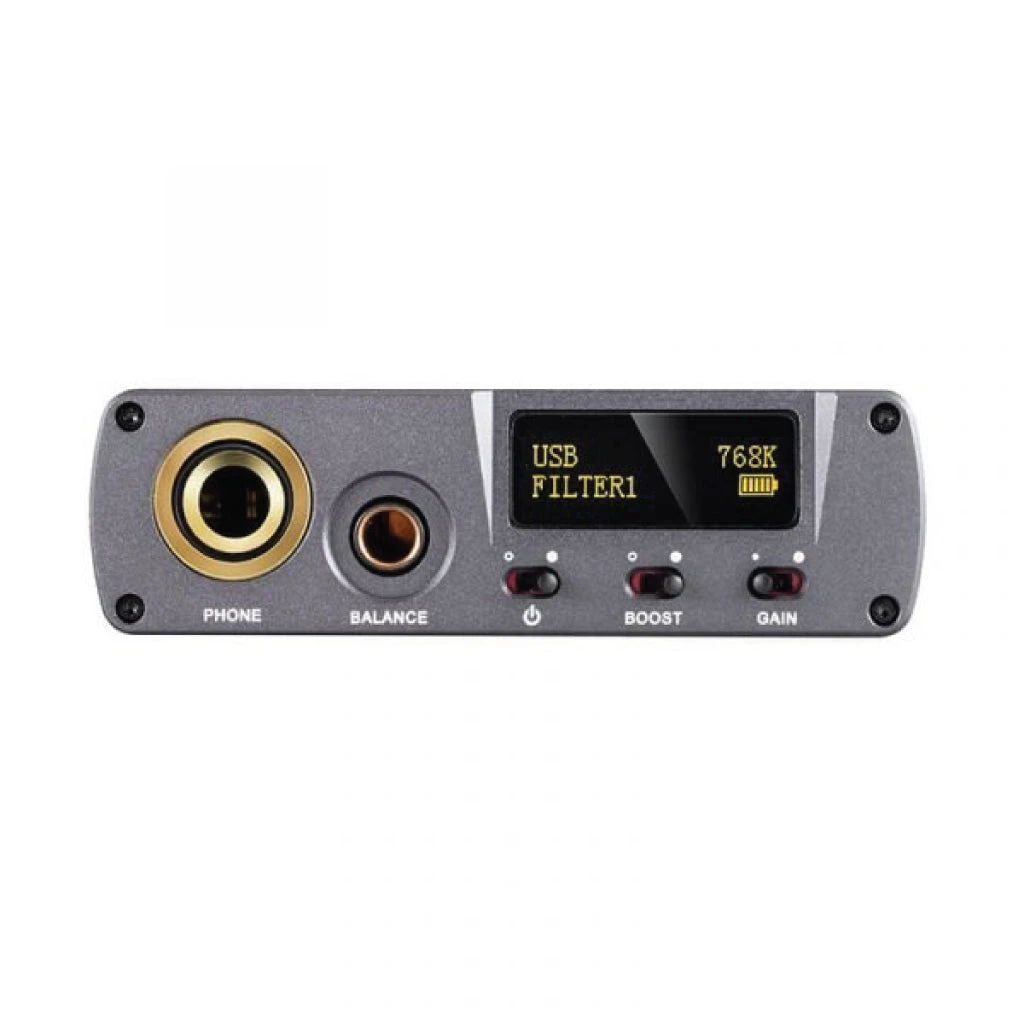

xDuoo XD05 gives Battery power supply or external power supply, when you are at the computer desk, you can use external power supply, which has more power and can be used as a tabletop Amplifier. You can use the internal battery to supply power when you want carry it, so you don’t worry about the problem that the power of machine is not full when you want to go out. Using High-Definition OLED display, know whether the machine is in the best decoding state at any time.
